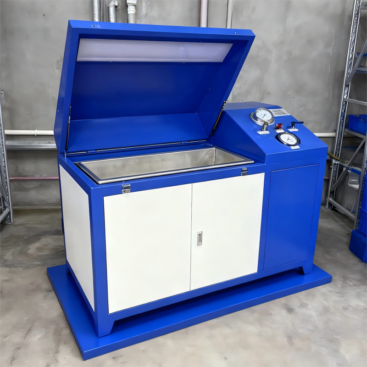

GA-Y117 High-Pressure Hose Burst Tester

Descriere

eu. Application Scope

The high-pressure hose burst tester is suitable for testing the pressure resistance and burst performance of various automotive hoses, rubber hoses, air conditioning ducts, and automotive assemblies. It complies with the test standard GBT16897-2010. Automatic control enables multi-station testing and multiple pressure control channels. If a specimen bursts, the test channel is immediately shut down. This complies with relevant national standards. High-pressure hose burst testers play an important role in assessing product quality, ensuring user safety, and guiding product improvements. They ensure that high-pressure hoses comply with relevant standards and requirements during design and manufacturing, thereby preventing accidents caused by hose rupture during use.

II. Equipment Features

1. Computer-controlled pressure increase rate for constant pressure increase.
2. Equipped with an explosion-proof enclosure for product burst testing, protecting test personnel.
3. Both manual and automatic control modes are supported, independent of each other.

III. Parametri tehnici

1. Driving Air Pressure Range: 0.1-0.69 MPa; output pressure is proportional to driving air pressure.
2. Air Consumption: 1 Nm³/min
3. Pressure Test Range: 0-300 MPa. Select the appropriate pressure based on your specific needs.
