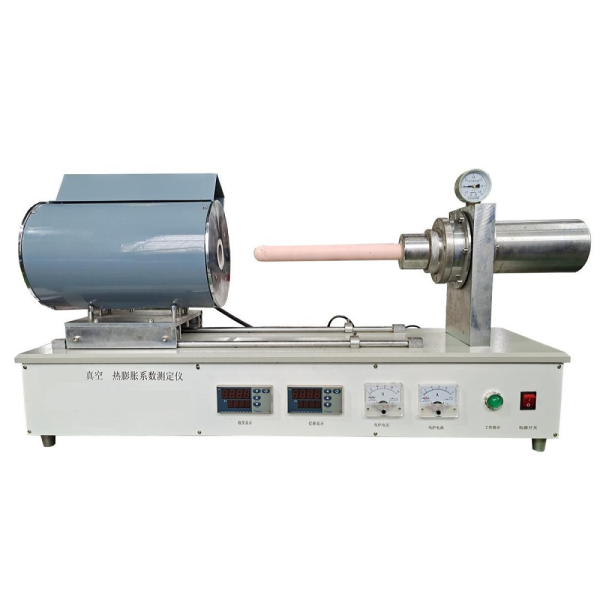

ISO10545 Vacuum Dilatometer

I.Product introduction
The instrument is used to determine the expansion and contraction performance of metal materials, ceramică, sticlă, glaze, refractory materials and other non-metallic materials in the process of hot roasting.

ISO10545 Vacuum Dilatometer

II.reference standard
Standard de referință instrument: GB/T3810.8-2016 and ISO 10545.8-1994 Determination of linear thermal expansion of ceramic tiles,GB/T16920-1997 determination of average linear thermal expansion coefficient of glass,GB/T3074 (1).4-2003 Determination of thermal expansion coefficient of graphite electrodes,GB/T 7320-2008 “Test method for thermal expansion of Refractory products”, GB/T4339-2008 “Determination of characteristic parameters of thermal expansion of metal materials”.
Can be selected according to user requirements through the atmosphere protection or vacuum, vacuum degree -0.09MPa.

ISO10545 Vacuum Dilatometer

III.Product parameter

maximum furnace temperature 1000℃, 1400℃, 1600℃, 1700℃;
heating speed 0-20 degrees/min adjustable, microcomputer program temperature control, temperature control accuracy ±1℃
measuring deformation range ±1.5mm
measurement expansion value resolution ≤0.1um
The computer automatically calculates the expansion coefficient, volume expansion, linear expansion.
automatically calculate the compensation factor and automatic compensation, but also manual correction.
sample size Φ 6 ~ 10×50mm, 10×10×50mm
alimentare electrică 220V, 2KW
GA-365 intelligent dilatometer with computer automatic temperature control, record, depozitare, printing number, printing temperature – expansion coefficient curve. All test operations are completed by the computer interface, easy to operate and learn and provide a full set of software.

Configurație: including one GA-365 dilatometer host, un set de software, one communication interface and data line, one quartz standard sample, one vacuum seal, one vacuum pump, one desktop computer (can be supplied by the demander).

Notă: Vacuum vertical dilatometer is also available.
