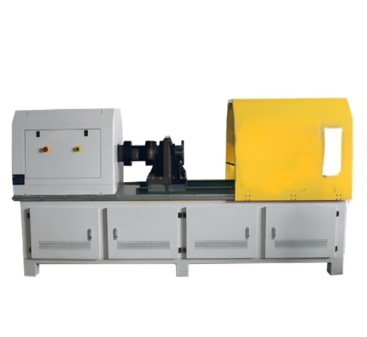

Flexible Flywheel Disc Assembly Torsion Testing Machine GA-X161

Descriere

Descriere produs:

The flexible flywheel disc assembly torsion testing machine is primarily used to test the mechanical properties of flexible flywheel assemblies, including torsional stiffness, torque yield, torsional strength, torsional failure, torque load, static torsional strength, and torsional clearance.

Torsion Angle Testing:

The flexible flywheel disc assembly torsion testing machine utilizes a high-precision torque sensor that can capture torque in both positive and negative directions. The torsion angle is directly connected to the specimen area, eliminating the errors associated with motor angle encoders used by some manufacturers and ensuring accurate and reliable angle display. The collected sensor signals are processed by a computer data acquisition and processing system and displayed in real time on the computer screen.

Parametri tehnici:

Optional sensor range (Nm): ±10,000
Torque measurement range: 1%-100% FS
Minimum torque reading (Nm): 0.01
Test torque resolution: 1/±300,000
Relative error of torque indication: ≤±1.0% (forward and reverse directions)
Relative error of torque repeatability: ≤1.0% (forward and reverse directions)
Angular measurement range: 0-10,000°
Relative error of angle indication: ≤ ± 1% (forward and reverse directions)
Minimum resolution of angle display (small angle measurement): 0.01°
Minimum angle reading: 0.01°
Test de viteză: 0.05-720°/min (2 rpm), customizable.
Torsion speed indication relative error: ≤ ± 1% (forward and reverse directions).
Torsion speed indication repeatability error: ≤ ± 1%.
Distance between force plate and torque plate (mm): 0-600 mm.
Specimen clamping diameter: Customizable based on the actual specimen.
Alimentare electrică: AC 220V ±10%, 50Hz.
Specimen clamping method: Standard flange chuck (customizable based on the actual specimen) or three-jaw chuck
Test level: Nivel 1
