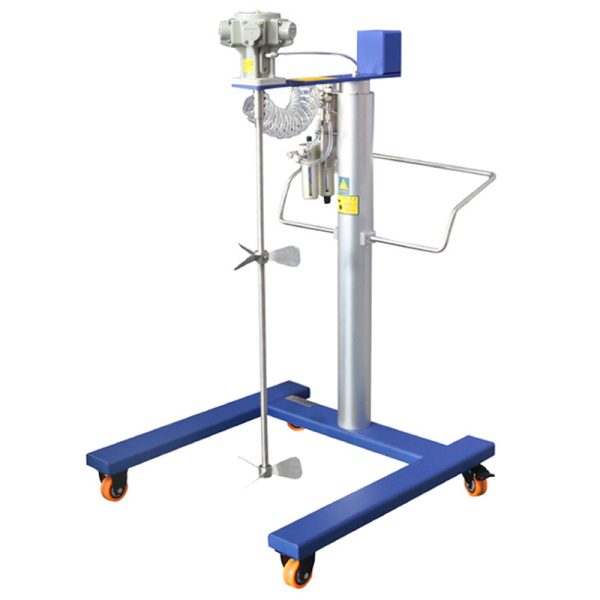

BGD 722 Air Pneumatic Mixer

Descriere

BGD 722Air Pneumatic Mixer

These air pneumatic mixers are designed to be used in explosion-proof requirements environment, such as oil-based paints or some special solvents.They use compressed air （5kg/cm²/70psi）as power , and can be moved anywhere to finish mixing.

◆ Explosion-Proof (no electric and spark)

◆ Motor will not be hot when the machine working

◆ Motor can rotate clockwise or counter-clockwise

BGD 722Air Pneumatic Mixer

Principalii parametri tehnici

Parametrii → Ordering Information↓	Putere	Max. Torque	Working Speed	Capacitate	Structura
BGD 720 Air Pneumatic Mixer	0.1HP	0.64 N.m	0-1100 rpm;	1-10 KG	Floor Mode
BGD 722 Air Pneumatic Mixer	0.25HP	1.56 N.m	0-900 rpm	20-50 KG	Floor Mode
BGD 723 Air Pneumatic Mixer	0.25HP	1.56 N.m	0-900 rpm	20-50 KG	Transportable （With bench）
BGD 725 Air Pneumatic Mixer	0.5HP	4.8 N.m	0-720 rpm	50-200 KG	Transportable （No bench）
BGD 728 Portable Pneumatic Agitator	0.5HP	—-	0-700 rpm	10-50 KG	Portable

ent, such as oil-based paints or some special solvents.They use compressed air （5kg/cm²/70psi）as power , and can be moved anywhere to finish mixing.

◆ Explosion-Proof (no electric and spark)

◆ Motor will not be hot when the machine working

◆ Motor can rotate clockwise or counter-clockwise

BGD 722Air Pneumatic Mixer

Principalii parametri tehnici

Parametrii → Ordering Information↓	Putere	Max. Torque	Working Speed	Capacitate	Structura
BGD 720 Air Pneumatic Mixer	0.1HP	0.64 N.m	0-1100 rpm;	1-10 KG	Floor Mode
BGD 722 Air Pneumatic Mixer	0.25HP	1.56 N.m	0-900 rpm	20-50 KG	Floor Mode
BGD 723 Air Pneumatic Mixer	0.25HP	1.56 N.m	0-900 rpm	20-50 KG	Transportable （With bench）
BGD 725 Air Pneumatic Mixer	0.5HP	4.8 N.m	0-720 rpm	50-200 KG	Transportable （No bench）
BGD 728 Portable Pneumatic Agitator	0.5HP	—-	0-700 rpm	10-50 KG	Portable

BGD 722Air Pneumatic Mixer

BGD 722

BGD 723

BGD 725

Efficient dispersing blade
