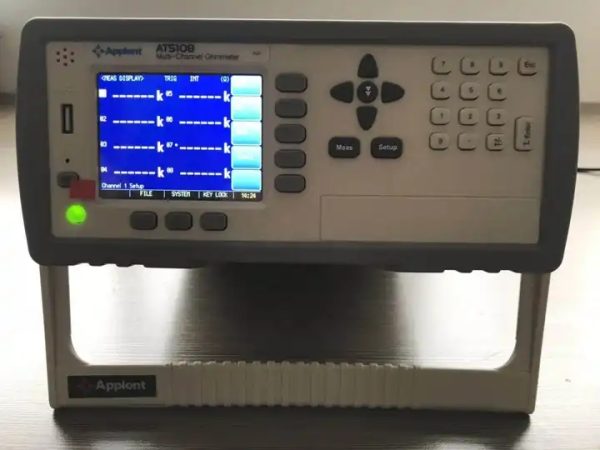

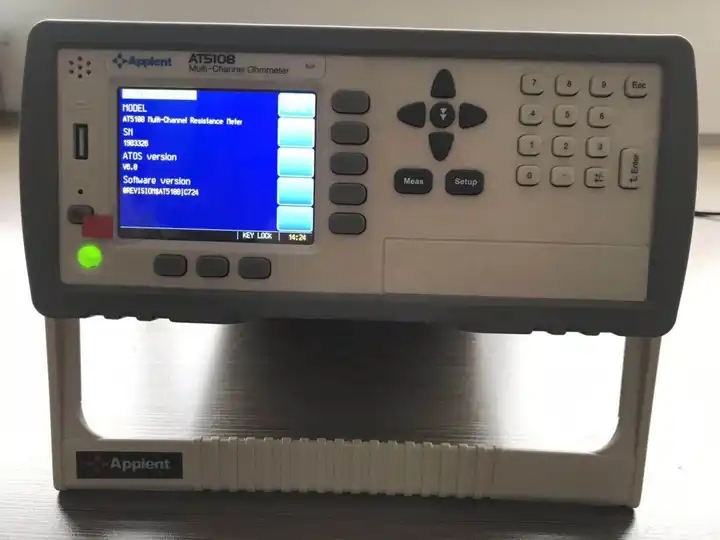

Anbai AT5108 DC Low Resistance Tester
- Descriere
- Anchetă
Descriere
DC Low Resistance Tester
Scurta introducere
AT51xx series are brand new design wide range and multi-channel resistance meter with high accuracy, which can scan and test multi- channel of resistance and can set a comparator for each channel. AT51xx series adopt high performance ARM micro processor control. The true-color 3.5 inches LCD can display multi channels of resistance simultaneously. Resistance range 1μΩ~30KΩ and max display result 30,000 digits. Its temperature compensation function can adapt different testing requirements. It can be applied to automation equipment. RS232C and Handler interface output 8/10/20/30 channels so as to improve the testing ability of production automation.
DC Low Resistance Tester
Parametru tehnic
| Specificații | ||||
| AT5108 | AT5110 | AT5120 | AT5130 | |
| Parametrii | DC resistance | |||
| Channel | 8 channels (Scanning) | 10 channels (Scanning) | 20 channels (Scanning) | 30 channels (Scanning) |
| Precizie de bază | 0.05% | |||
| Lectură maximă | 30,000 | |||
| Raza de masurare | 1μΩ~30kΩ | |||
| Signal Source | Max current:<1A | |||
| Gamă | Automat, manual | |||
| Viteză | 30ms/channel (manual) | |||
| Corecţie | Short circuit zero correction within full range | |||
| Trigger | Internal trigger; remote trigger; external trigger; manual trigger | |||
| Interfață | RS-232C interface,(SCPI instruction set, Handler (PLC) interfata) | |||
| Comparator | Each channel can be independently set | |||
| Temperature compensation | Precizie: 0.2℃, temperature range: 0-80℃ | |||
| Test Lead | Four-terminal shield for each channel(inclusiv 2 detection element and 2 driving element) | |||
| Other | TFT true color LCD display; can set resistance upper limit and lower limit
Temperature compensation; Keyboard lock function |
|||
| General Features | ||||
| Alimentare electrică | Voltaj: 198VAC-250VAC, frecvenţă: 50Hz, putere: max 15VA; Optional 110VAC | |||
| Size and weight | Outer size(mm):264 (lăţime)x107(înălţime)x350 (adâncime)
Inner size:216(lăţime)x88(înălţime)x323(adâncime) Greutate: 4kg |
|||
| informatii despre comanda |
|
|||
| Accesorii | ATL503 Kelvin clip; test leads; senzor de temperatură
Handler cable RS232 communication cable AC power cord |
|||
