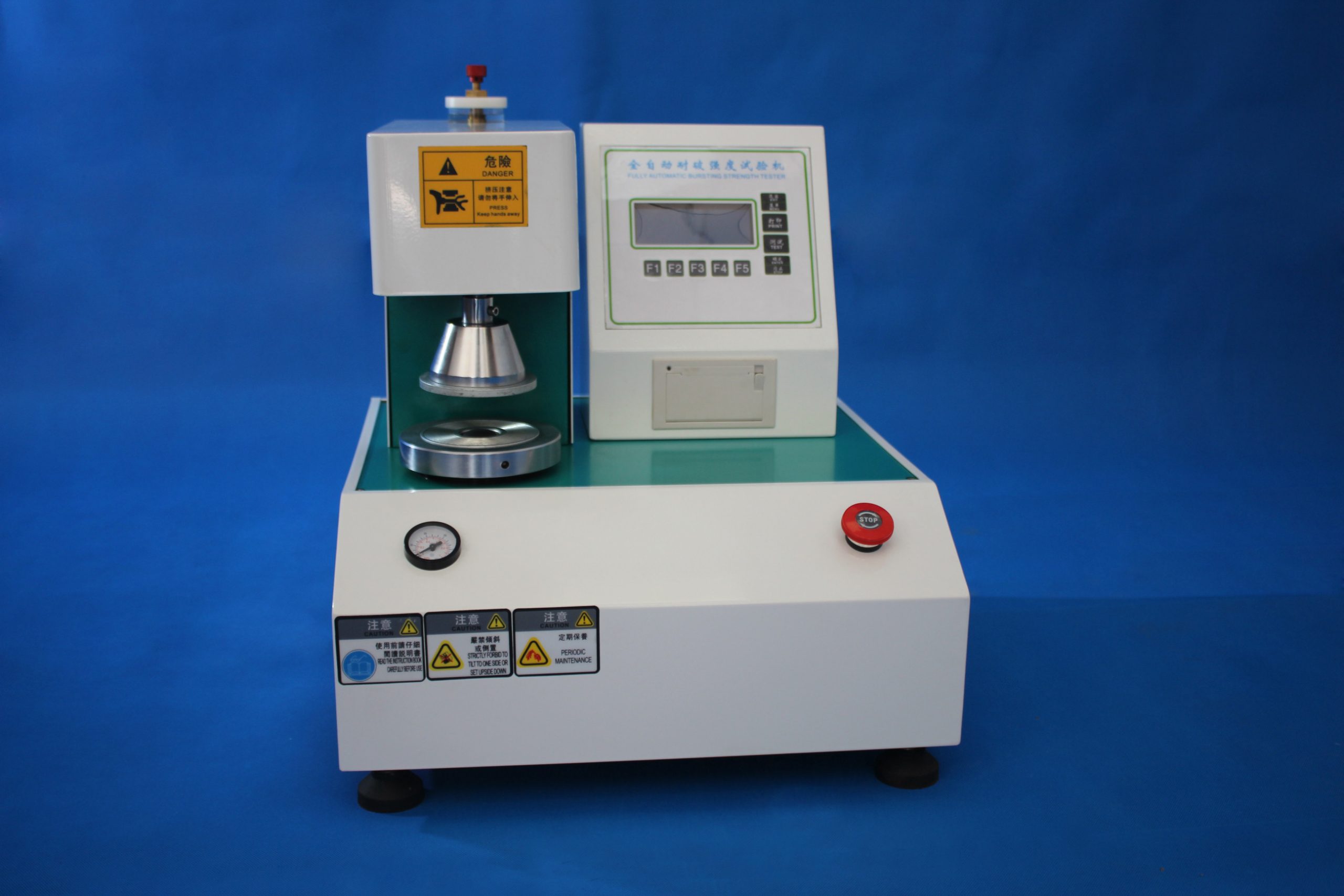

LR-F068 Automatic burst strength tester
- Descrição
- Investigação
Descrição
burst strength tester
Usar(Aplicativo)
Automatic rupture strength testing machine in line with relevant standards, using pneumatic clamp sample, display de cristal líquido,suitable for cardboard, corrugated cardboard and other sheet plate rupture resistance determination.
Standard basis
ISO 2759: Determination of the resistance to breakage of paperboards GB/T 1539: Determination of cardboard breakage; QB/T 1057: paper and board breakage tester.
ISO 2759: Determination of the resistance to breakage of paperboards GB/T 1539: Determination of cardboard breakage; QB/T 1057: paper and board breakage tester.
burst strength tester
| Induction mode | Pressure transducer |
| Saving result | with printing function, 10 groups of data can be printed to automatically calculate the average value |
| Modo de exibição | HD LCD display, digital A/D value feed rate 100 times /S, high test accuracy |
| Strength unit | kgf/cm2, Lb/in2, Kpa (with unit switch function) |
| Faixa de medição | 250 ~ 6000kPa |
| The resolution | 1kPa |
| Precisão de medição | Indication error: melhor que ±1%FS |
| Indication variability | better than ±1% |
| Oil pressure speed | high pressure 170±10ml/min |
| film resistance | convex 10mm, 170kPa ~ 220kPa; Protrusions 18mm, 250kPa ~ 350kPa |
| ring material | aço inoxidável |
| Holding force | > 690Kpa (ajustável) |

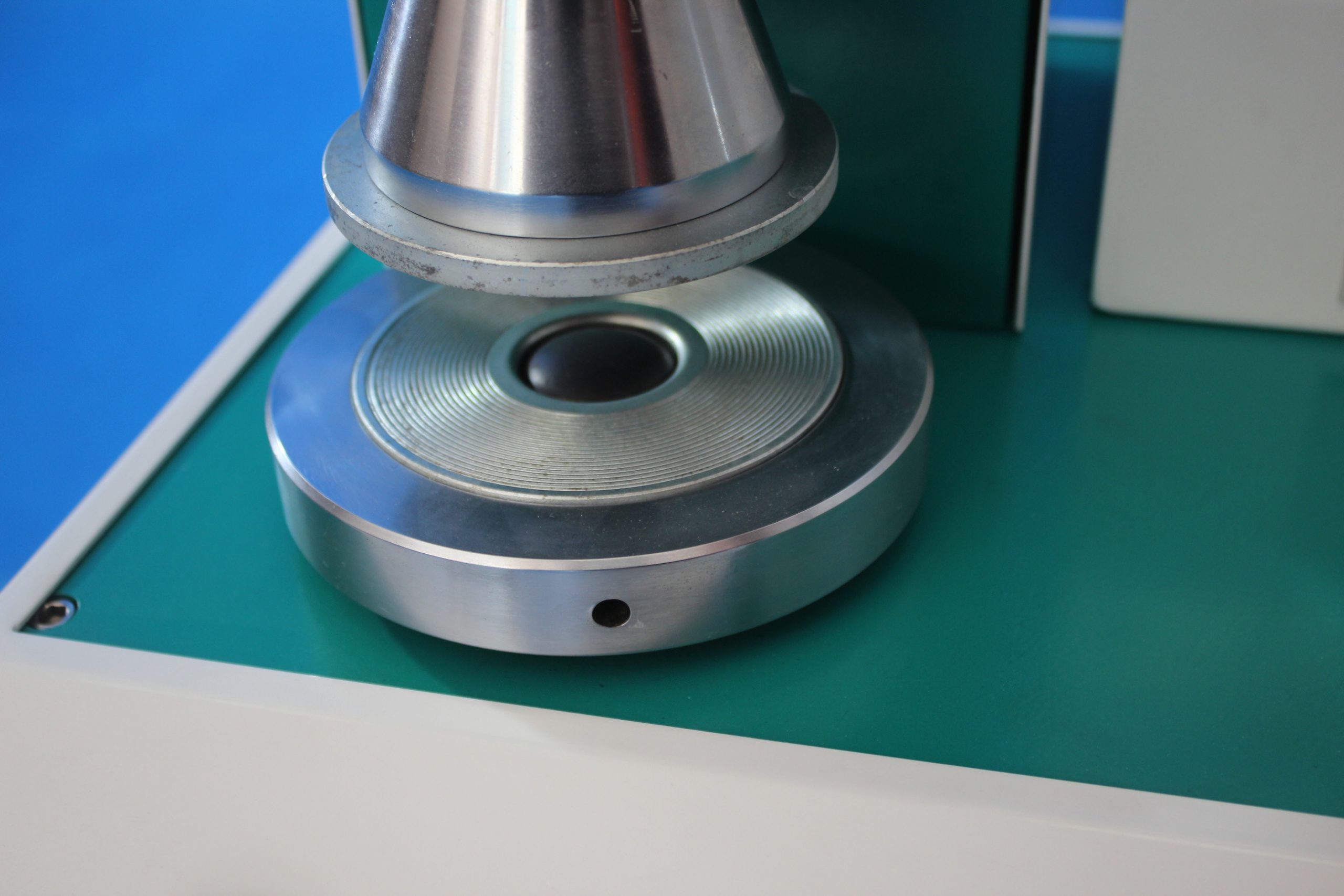

| Inner diameter of upper clamping ring hole | φ (31.5±0.05) milímetros |
| Upper chuck diameter | 95milímetros |
| Lower chuck diameter | 135milímetros |
| Liquid pressure oil | silicone oil |
| Volume | 430*530*520milímetros |
| Peso | about 70KG |
| Fonte de energia | 1∮,AC220V |
| Configuração padrão | 5 rubber film, 1 wrench, 10 correction pieces, 1 bottle of silicone oil |
