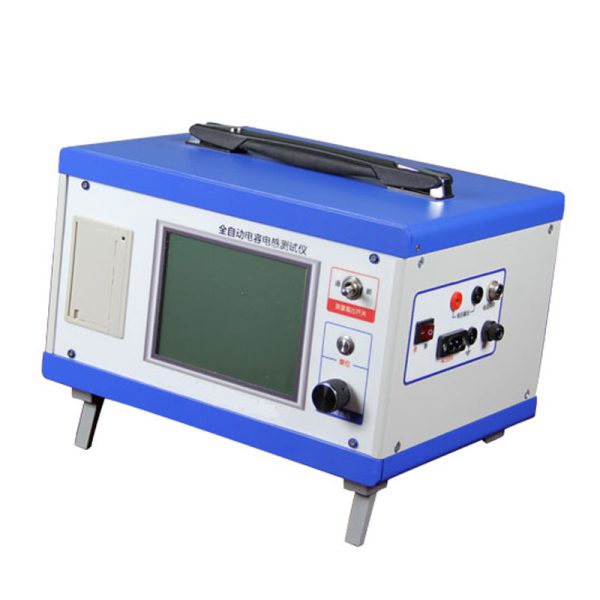

KG-500L Capacitância Indutância Medidor

Descrição

KG-500L Capacitância Indutância Medidor

Introdução do produto
KG-500L automatic capacitance and inductance tester has the characteristics of small measurement workload, fast and simple, desempenho estável, accurate measurement and high fault detection rate.
KG-500L automatic capacitance and inductance tester is specially developed for measuring the capacitance value of a single capacitor in the shunt capacitor bank in the substation. It focuses on solving the following problems:
1, the field measurement of a single capacitor needs to remove the connection line, not only the workload is large and easy to damage the capacitor.
2, capacitor meter output voltage low resulting in low fault detection rate.
3. Measure the inductance of the reactor.

KG-500L Capacitância Indutância Medidor

Características do produto
1, automatic range conversion;
2. Store 7168 test data;
3, large screen LCD (320×240 LCD) mostrar, Chinese menu operation prompts;
4, to achieve waveform and measurement processing data on the same screen display, so that the test process is more intuitive;
5, with setting, calibration and debugging functions.

KG-500L Capacitância Indutância Medidor

Parâmetros do produto
1, capacitance range: 0.2μF ~ 2,000μF;
Capacity range: 5 ~ 20,000 kvar;
Precisão de medição: 0.2μF ~ 2μF ±1% reading ±0.02μF;
2μf ~ 2,000μF ±1% reading ±2 words;
2, inductance range: 1mH ~ 9.99H; Precisão de medição: ±1.5% reading ±2 words
3, output measurement voltage: AC 26V/500VA; 50Hz;
4, modo de exibição: large screen LCD full Chinese output, surface plate thermal printer
5, shape/weight: 370×370×220 mm / 16 kg
6. Condições de trabalho:
um. Temperatura ambiente: 0℃ ~ +40℃, humidade relativa: ≤90%
b. Fonte de energia: AC 220V±10%; 50Hz.
