Máquina de teste de imersão de pressão GA-IPX7

Descrição

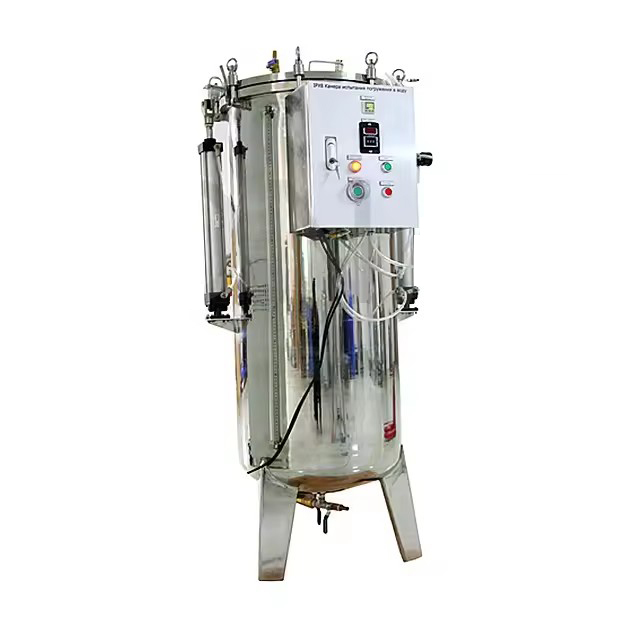

Pressure immersion testing machine

Padrão:

Complies with IEC60529:2001 “Degrees of protection provided by enclosures (IP Code)”, “Enclosure Protection Level (IP Code)” “Lamps Part 1: General Requirements and Tests” 9.2.9 The requirements of the terms;

Aplicativo:

A principal função do equipamento é testar as propriedades físicas e outras relacionadas de produtos eletrônicos e elétricos, lâmpadas, armários elétricos, componentes elétricos, automóveis, motorcycles and their parts under simulated rain conditions. After the test, it is judged whether the performance of the product meets the requirements, so as to facilitate the design, melhoria, verification and factory inspection of the product.

Características:

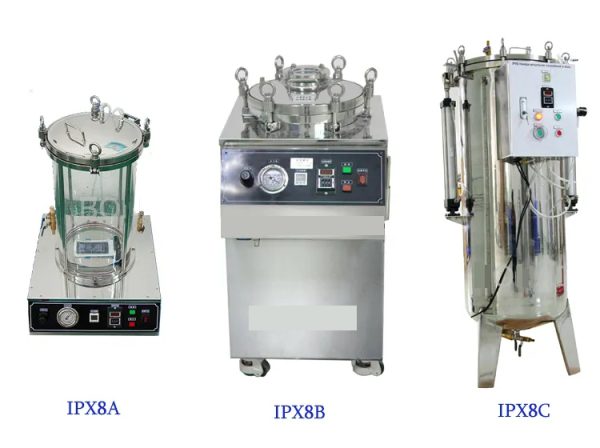

1. Applicable to IPX8 testing of products.

2. The whole body of IPX8 pressure immersion test device adopts SUS304# stainless steel plate with high-precision overall sub-arc welding, the outer mirror polishing, the inner layer is rough and thrown, the appearance is beautiful, convenient and clean and durable.

3. Special silicone seal ring (elasticity willnever aging, can be used for ten years).

4. There is time control function, the setting time is: 0-999 minutos. When the test time is reached, the pressure will be automatically stopped, and the air in the tank will automatically drained. The tester can open the can lid and take out the test sample.

5. There is a water inlet valve and a drain valve at the bottom of the tank, and can connect with a 5 meter water hose, bottom also with 4 wheels for movement.
