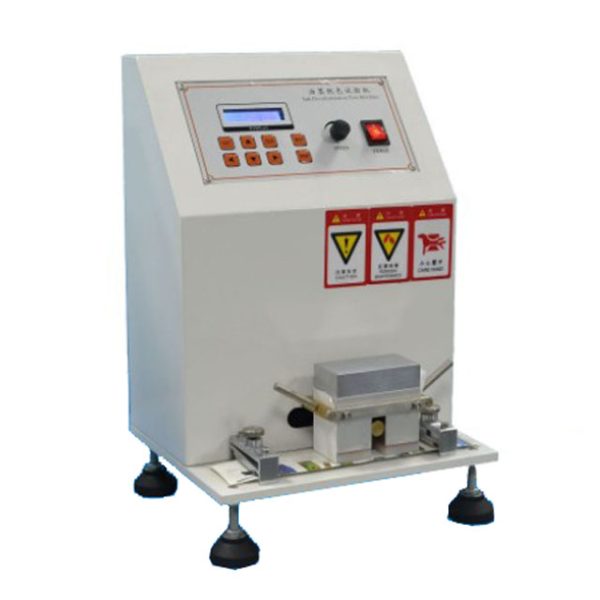

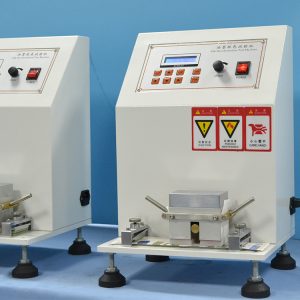

GA-5012 Ink Rub Tester

Descrição

Ink Rub Tester

Padrão de teste

GB7706 conforms to JIS5701 and ISO9000 JIS-507-1, TAPPI-UM486, GB7706, ASTM D5264standard.

Usar

Ink Rub Tester is suitable for testing the abrasion resistance and decolorization degree of ink, printed matter and color printing box.

Princípio

The machine is tested by rubbing with white glossy paper (or white book paper) to determine the degree of wear resistance and decolorization.

Especificação

The friction block reciprocates in a straight line and horizontally.About 60 milímetros

Modo de operação: LED display

Sample area: 60x220mm

Velocidade de fricção: the speed can be adjusted (21/43/85/106) rpm

Friction load: 2lb/4lb

Friction stroke: 60milímetros

Frequency setting: 0-999999 parada automática

Friction area: 50x156mm

Machine power: 40C

Tamanho da máquina: 263x230x350mm WxDxH

Peso da máquina: 15kg

Operating voltage: AC 220V 50/60hz 1A
