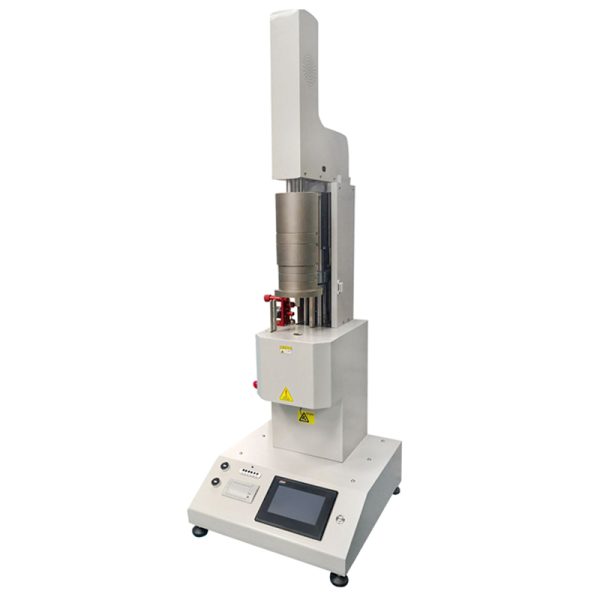

Testador de índice de fluxo de fusão totalmente automático GA-1001-D

Descrição

Testador de índice de fluxo de fusão totalmente automático GA-1001-D

1.Padrão de teste：

Testador de índice de fluxo de fusão totalmente automático GA-1001-D

2.Introdução do produto：

This tester for high precision automatic melt flow rate instrument, used for testing all kinds of plastic, resin in the state of viscous flow through a certain temperature and load, every 10 min module and melt flow rate through the standard port MFR/MVR value, it is suitable for high temperature of polycarbonate, aromatic sulfone, fluorine plastics, nylon engineering plastics, can also be applied to polyethylene (Pe), poliestireno (PS), polipropileno (PP), ABS resin, polyformaldehyde (POM), polycarbonate (PC) resin with lower melting temperature, such as plastic test, widely used in plastic production,Plastic products, petrochemical and other industries and related institutions, scientific research units and commodity inspection departments.

Testador de índice de fluxo de fusão totalmente automático GA-1001-D

3.Product advantage：

• Ø more paragraphs (2) temperature control method, two groups of platinum resistance sensor, two heating jacket separate temperature control, high accuracy intelligent PID control, ramp rate the heating speed is adjustable
• Ø resolution temperature was 0.1 ℃, the temperature uniformity of 0.2 ℃, the temperature fluctuation of not more than 0.5 ℃ within 24 horas, the displacement sensor resolution is 0.001 milímetros.
• Thermal protection device
• Ø hand automatic cutting material, can be arbitrary set blanking time (0 ~ 999), blanking times (0 ~ 999)
• Ø test can choose quality standard, or volume method, two test methods or simultaneously, and can melt density is calculated.Both methods are tested when the piston rod moves to a certain position.
• Ø stable internal temperature alarm prompts, and an increase of 240 segundos (GB3682 regulations) material preheat second countdown, after the end of the countdown, issued a prompt, can also set the American standard (ASTM) preheating time, etc..
• Ø built-in many plastic material melt index test conditions, convenient customer used to be obtained at any time, reduce the tedious work, and storing the last test conditions and results
• Built – in mini printer for easy printing test data
• Ø high precision touch screen controller, 7 tela sensível ao toque de polegadas, can be stored and print test conditions and data recently, test print menu Settings include test time (the default) system, operating personnel, material name, test method, test conditions (temperatura, weight weight, blanking interval) dados, test results, test results, the artificial judgement OK or NG, etc.,
• Ø reserved RS232 interface or USB interface to connect computers, can through the computer control instrument operation and to save test data transmission to the computer,
• Ø need weight load, are installed in screen equipment to choose corresponding weight and loading that no user manual loading or bolt type selection, reduce the workload.Test completion self – rising.

Métodos de teste:MFR +MVR Methods

Modo de exibição:Tela de toque colorida em inglês

Testador de índice de fluxo de fusão totalmente automático GA-1001-D

4. Technical Speicification
