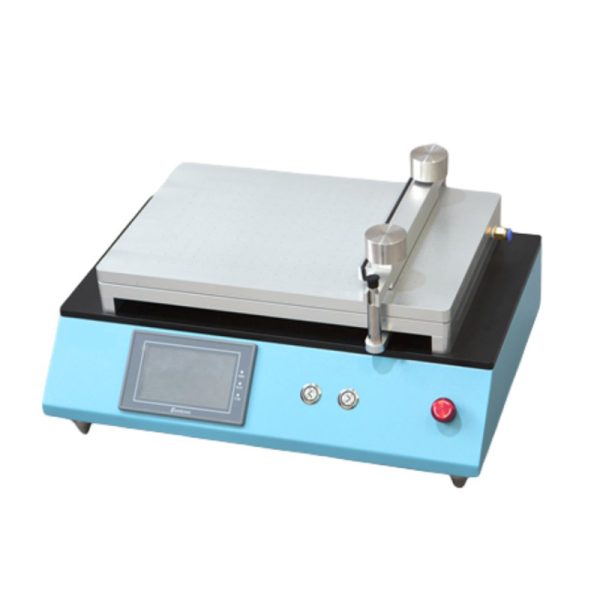

Máquina de revestimento automática AFA-V/VH AFA-VI/VIH

Descrição

Máquina de revestimento automática AFA-V/VH AFA-VI/VIH

Visão geral:
AFA automatic film coating machine adopts electric push rod to realize the coating movement of wet film preparation device or wire rod, which can effectively avoid the instability of manual coating. The machine adopts single-chip microcomputer control technology; Touch screen display, select left and right speed and displacement, real-time display the actual moving distance of coating during operation; The coating frame can be returned electrically or manually; The operation interface is simple and clear, greatly convenient for the operator to use; For ease of use, left and right start/stop mechanical buttons and emergency stop mechanical buttons have also been added.

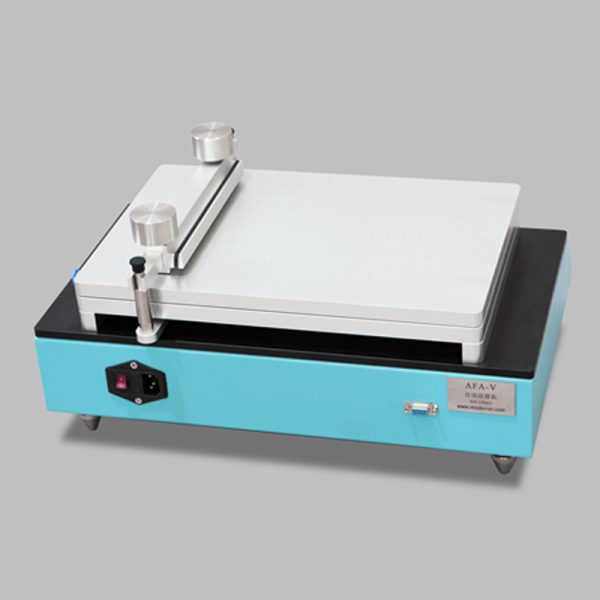

The AFA-V model has two optional configurations of detachable “vacuum coater” e “fixture coater” for customers to choose when ordering. The AFA-VI is a “vacuum coating table” configuration. The AFA-VH and AFA-VIH models are “electric vacuum coating table” configurations.
The vacuum coating table uses an external vacuum pump (opcional). The panel of the vacuum coating table is positioned by the dowel and can be easily removed for cleaning.
The electric vacuum coating table uses an external vacuum pump (opcional), and the heating uses a built-in integrated temperature control.
The coated pusher rod of this machine has been improved, which can be used for wet film preparers, and can also be used for various specifications of wire rods after installing wire rods and pushing frames, and there is no limit on the length of wire rods. The rod pusher has an additional counterweight to meet the pressure requirements of the rod coating.
Observação: Wet film preparers and wire rods must be purchased separately.

Máquina de revestimento automática AFA-V/VH AFA-VI/VIH

Observação:
1, do a good job of cleaning and maintenance of the instrument after use.
2. If the coating substrate is smaller than the suction hole range of the vacuum coating table, cover the exposed holes with electrostatic cling film.
3, the vacuum coating table panel can be cleaned under the work, pay attention to the upper and lower planes do not bump affect the vacuum effect.
4, the wire rod push frame can be used for positive and negative installation (fixed by the screw of the counterweight block), one side for the diameter of the wire rod below 12, one side for the diameter of the wire rod above 12. Remove from the pusher when not in use.
5, wearing parts specifications: vacuum coating table O-ring 335× 5.30GB3452.1; Rod push-frame O-ring 100× 3.55GB3452.1.
6, electric heating type (AFA-VH type and AFA-VIH type) after opening heating pay attention to the table may be hot! Please protect yourself against scalding.

Máquina de revestimento automática AFA-V/VH AFA-VI/VIH

Parâmetro
