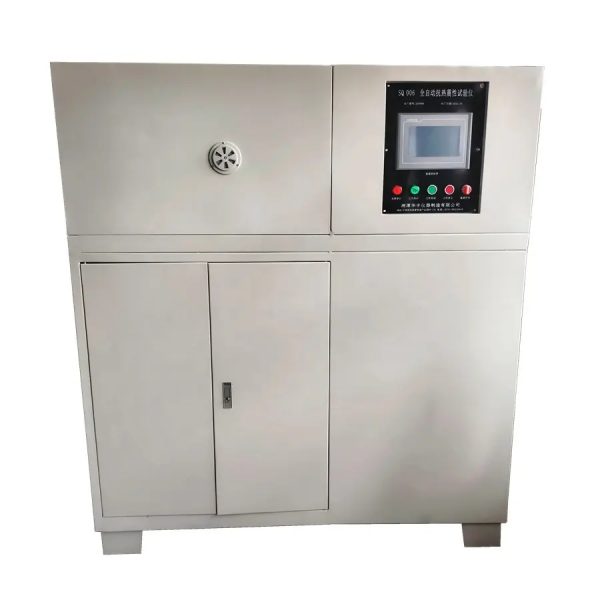

SQ006 Ceramic Tile Thermal Resistance Tester

Description

SQ006 Ceramic Tile Thermal Resistance Tester

Introduction

 It is in line with GB/T3810.9-2016, ISO10545-9 on thermal shock resistance of ceramic tile determination request. It uses immersion method and non-invasive method according to the different water absorptions.

 Automatic Ceramic tile thermal shock resistance testing machine based on the national standard requirements, simple operation, accurate and reliable data, small size. The thermal stability of ceramic products can be tested in time by the test of this index. It can provide necessary technical data for production process and scientific research.

Simple operation: the user only needs to put the sample into the basket, turn on the power switch, and press the button to start the work. The whole test process is completed automatically. After the test, the tuser only needs to take out the sample. Compared with the old instruments, it reduces the complicated and heavy operation in the middle.

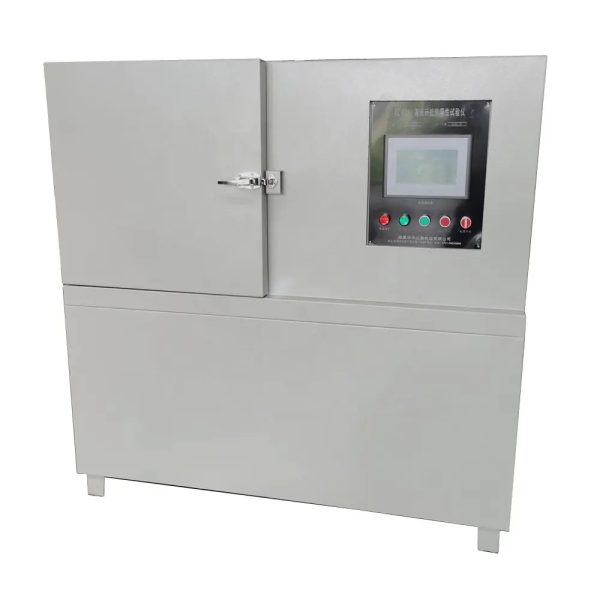

SQ006 Ceramic Tile Thermal Resistance Tester

The main technical parameters:

   1.Furnace maximum working temperature: 200 °C;

   2.Temperature difference: ±1°C;

   3. Control accuracy: ± 1°C (at 200 °C);

   4. The effective volume : 350 × 350 × 350 mm/ 600 × 600 × 600 mm for choose ;

   5. Cold furnace heating time:60minutes(from room temperature-200°C).

   6.Cold furnace temperature rising time:5 minutes(200°C,Materials Weight:7kg);

   7. Flume controlled temperature range :15-50 °C;

   8. temperature control accuracy: ± 1°C;

   9. Unevenness of temperature: ± 1°C;

   10. rising temperature of hot material after into the water within five minutes: ± 4 °C (Materials temperature 200°C,7kg);

   11. Furnace maximum power: 6KW;

   12. Hydropower largest heating Power: 6KW;

   13. Compressor Power: 380V; 2.2KW.

   14. Timer range: 0 ~ 180 minutes.
