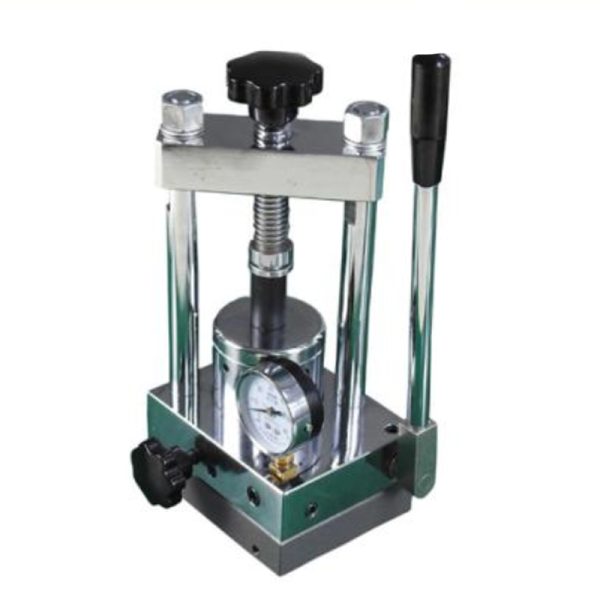

PM-12 Powder Pressing Tester
use
PM-12 powder tablet pressing machine is a mini pressure testing machine, specially designed for the preparation of powder sample pieces of infrared spectrometer, a compact, labor-saving, convenient, specific manual hydraulic infrared tablet pressing machine, durable, reliable performance, cost-effective.
PM-12 Powder Pressing Tester
Parameter
| Model | P M-12 |
| pressure limit | 0-12T（0-30MPa） |
| piston diameter | Chrome plated cylinder Φ70mm |
| One-piece structure | Motherboard, oil pool, piston without sealing connection |
| pressure gage | Pressure, pressure double scale pressure gauge |
| Maximum piston stroke | 20mm |
| Table diameter | 80mm |
| work space | 95×95×85mm |
| work space | ≤1MPa/10min |
| boundary dimension | 175×175×300mm |
| Weight | 15kg |
