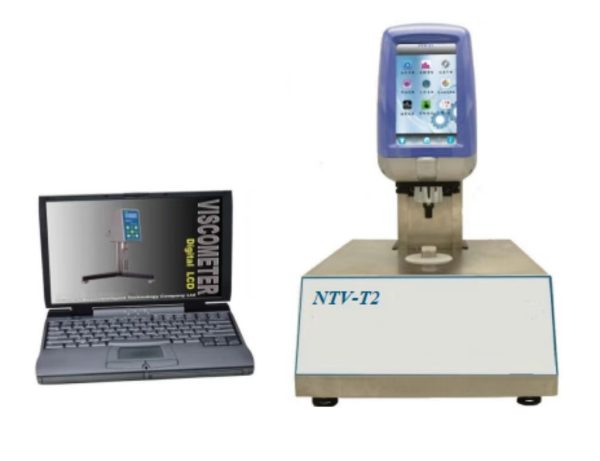

NTV-T2 temperature control viscosity meter
NTV-T2 temperature control viscosity meter
- Description
- Inquiry
Description
NTV-T2 temperature control viscosity meter
Technical Features
1.7 inch intelligent touch operation, including dynamic viscosity value, kinematic viscosity value, viscosity temperature curve and other information integration display barrier electric automatic lifting system, viscosity measurement and temperature control part of the integrated design, correct positioning
2.The temperature control is set directly on the screen, and the temperature can be set by a single point
Support external U disk data storage; Single point, continuous, timing three ways to choose
3’The password protects the temperature and viscosity correction coefficient, allowing users to correct the temperature and viscosity correction coefficient by themselves on the premise of having reliable and accurate data
4’USB communication interface, gigabit high-speed network port communication, U disk storage data
5.SNB data acquisition software is optional to record the viscosity-temperature curve
6.Random comes with powerful operation wizard help
7.Ac power adapter 100V-240V, good anti-interference
NTV-T2 temperature control viscosity meter
Optional accessories
SNB data acquisition and plotting software
Standard oil
NTV-T2 temperature control viscosity meter
Applications
It is suitable for detecting low, medium and high viscosity fluids
| Model | NTV-T2L | NTV-T2R | NTV-T2HA | NTV-T2HB
|
| Range | 5-1M | 25-10MM | 50-20MM | 200-80M
|
| Temperature range | -1-200 | |||
| Rotor speed | 0.1-200 RPM (stepless) | |||
| Number rotors | Standard SC4-21, 27, 28, 29
(Optional rotor SC4-14, 15, 16, 18, 25, 31, 34) |
|||
| Accuracy
|
±1.0 (F/S)
|
|||
| Repeatability
|
±0.2% (F/S)
|
|||
| Power supply
|
Input AC100-240V, 50Hz/60Hz,
Output DC17V1.2A |
|||
