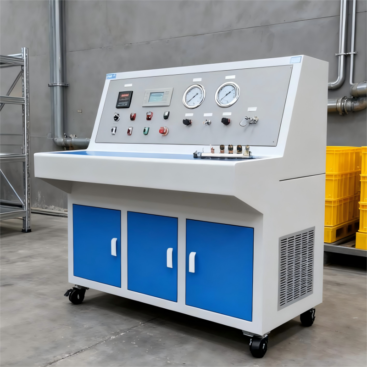

Low-Pressure Air Tightness Tester GA-Y122
Model:GA-Y122
- Description
- Inquiry
Description
I. Application Scope:
The low-pressure air tightness tester is suitable for air tightness testing of automotive lights, aluminum radiators, pipe fittings, low-pressure valves, and low-pressure pipelines. The tester can display pressure curves on a computer, record data, and print reports.
II. Equipment Features
1. Equipped with a low-pressure regulating valve, the pressure is adjusted via a low-pressure proportional valve.
2. Advanced technology and rational structural design. It features a compact size, light weight, and an elegant appearance.
3. The pressure is infinitely adjustable, and technical parameters such as hold pressure and hold time can be set.
III. Technical Parameters
1. Pressure Range: 20-100 kPa.
2. Control Method: Touchscreen or computer.
3. Test Method: Differential Pressure Method or Direct Pressure Method.
4. Working Medium: Air.
5. Equipped with a high-precision computer data acquisition system, it can print reports, save data to Excel, and display pressure curves in real time.
| Product Name | Low-Pressure Air Tightness Tester | ||
| Product Model | GA-Y122 | ||
| Basic Principle | Low pressure regulation control is achieved by regulating gas pressure through proportional valve | ||
| Performance Parameters | Test pressure | 20-100 kPa | |
| Pressure control accuracy | Test pressure range: +2% of upper limit, -1% of lower limit | ||
| Pressure resolution | 0.1 kPa | ||
| Pressure sensor | Test pressure sampling frequency: 50 ms | ||
| Test medium | Air | ||
| Pressure control method | Touch screen or computer | ||
| Number of specimens | One-way control of test pressure and test time (number of channels selectable) | ||
| Specimen mounting method | Manual or automatic clamping | ||
| Structural components | Pressure control device | ||
| Scope of application | Automotive lights, electrical appliances, pipes, valves | ||
