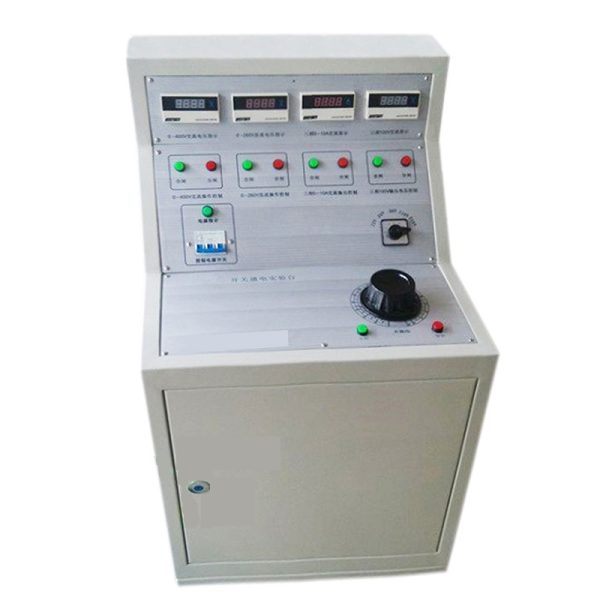

KDGK-II Switchgear power test bench

Description

Switchgear power test bench

Product overview
KDGK-II High and low voltage switchgear power test bench for high and low voltage switchgear manufacturers to produce high and low voltage switchgear before the factory power test. It can provide a variety of AC and DC power supplies to facilitate the detection of the switch cabinet and improve work efficiency.

Product characteristics
The power supply consists of a fully controlled three-phase rectifier module, a phase-shift trigger circuit, an automatic regulation circuit and an absorption circuit.
The transistor intelligent control module integrates the complex automatic regulation circuit, thyristor and trigger circuit. By adjusting the voltage of the control signal and changing the conduction Angle of the thyristor, the power supply can be adjusted and automatically controlled.
The trigger circuit system, thyristor and thermal conductivity base plate are isolated from each other, and the dielectric strength is greater than 2500V, which is safe and convenient to use. The input end of the three-phase rectifier module has no phase sequence limitation. Suitable for resistive and inductive loads.

Switchgear power test bench
