Description

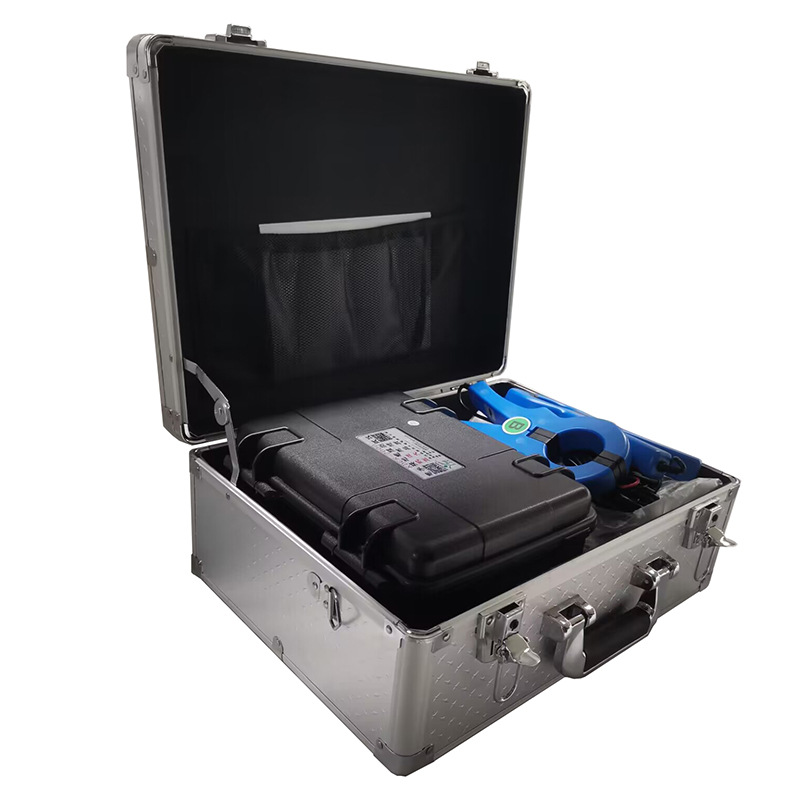

Double clamp ground resistance tester
Product overview
KDCR series clamp type earth resistance meter is widely used in power, telecommunication, meteorology, oil field, construction and industrial electrical equipment, such as earth resistance measurement, loop resistance measurement.
When measuring the ground system with a loop, it is not necessary to disconnect the ground lead line, no auxiliary electrode is required, safe and fast. It can measure the ground fault that cannot be measured by the traditional method, and can be applied to the occasions that cannot be measured by the traditional method, because the KDCR series clamp ground resistance meter measures the comprehensive value of the grounding resistance and the grounding lead resistance.

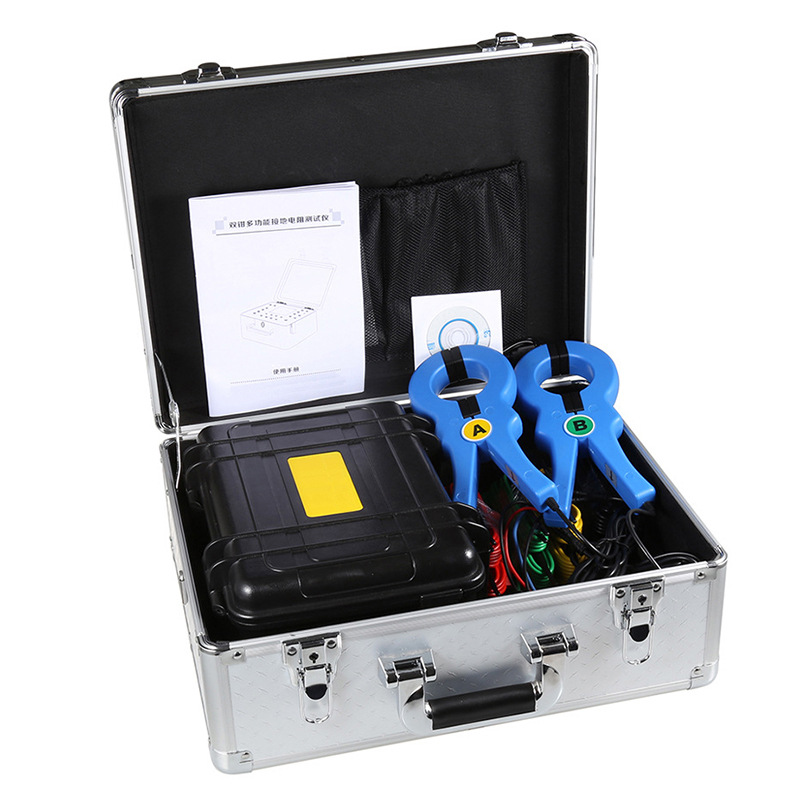

Double clamp ground resistance tester
Product characteristics
1, with USB-RS232 interface clamp ground resistance meter, data upload computer, software monitoring, dynamic display.
2, break through the long time of boot self-test wait, boot immediately into the test.
3. Break through the relay self-test method, eliminate the relay, and adopt intelligent algorithm and digital integrated processing technology.
4, break through the bulky characteristics of the old product, more in line with the characteristics of handheld instruments.
5, the appearance design panel 6-key operation, performance through.
6, increased the audible and visual alarm function, “dud-dud-dud-dud-” alarm sound.
7, increased the interference signal recognition, indicating function, “dud-dud-dud-dud-” prompt tone, NOISE symbol flashing
8. Add storage data: 99 groups.
9, the resistance range is wider: 0.01Ω-1200Ω
10, leakage current detection resolution is higher: 0.05mA
11, lower power consumption: the maximum starting current does not exceed 50mA.
12, the test speed is faster: 0.5 seconds/time
13, stronger anti-interference ability; Higher test stability.
Double clamp ground resistance tester
| Functions | ground resistance test, loop resistance test, leakage current test |
| Power supply | 6VDC (4 No. 5 alkaline dry batteries) |
| Resistance range | 0.01-1200Ω |
| Current range | 0.00mA-20.0A |
| Resistance resolution | 0.001Ω |
| Current resolution | 0.05mA |
| Resistance maximum accuracy | ±1%± 0.01Ω |
| Maximum current accuracy | ±2.5%±1mA |
| Data storage | 99 groups |
| Alarm threshold setting range | Resistance: 1-199Ω; Current: 1-499mA |
| Working temperature and humidity | -20℃-55℃; 20% RH- 90% RH |
| Liquid crystal display | 4-digit LCD digital display, length and width 47mm×28.5mm |
| Jaw size | long jaw 65mm×32mm; Round pliers mouth Φ32mm |
| Jaw opening size | long jaw 28mm; Round jaws 32mm |
| Quality of pliers | long mouth 1160g; Round jaw 1120g(including battery) |
| Meter size | Long mouth, length width thickness 285mm×85mm×56mm; Round pliers mouth: length width thickness 260mm×90mm×66mm |
| Explosion-proof mark | Exia ⅡBT3 |
| Protection level | Double insulation |
| Structural features | Clamp CT |
| Shift | Automatic shift |
| External magnetic field | < 40A/m |
| External electric field | < 1V/m |
| Single measurement time | 0.5 seconds |
| Resistance measurement frequency | > 1KHz |
| Measured current frequency | 50/60Hz automatic |
| Battery low voltage indicator function | When the battery voltage is lower than 5.3V, the battery low voltage symbol is displayed |
| Data used up | The number of groups of data stored reaches 99. The MEM symbol is displayed blinking |
| Overrange indication | Overrange indication “OLΩ”, “L0.01” or “OLA” |
| Automatic shutdown | The instrument will automatically shut down after about 5 and a half minutes |
| Power consumption | start up, the maximum working current is less than 50mA, continuous working for about 30 hours |
