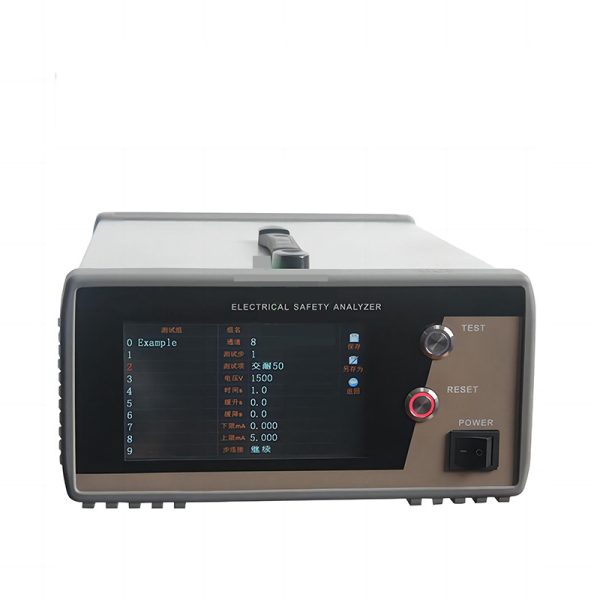

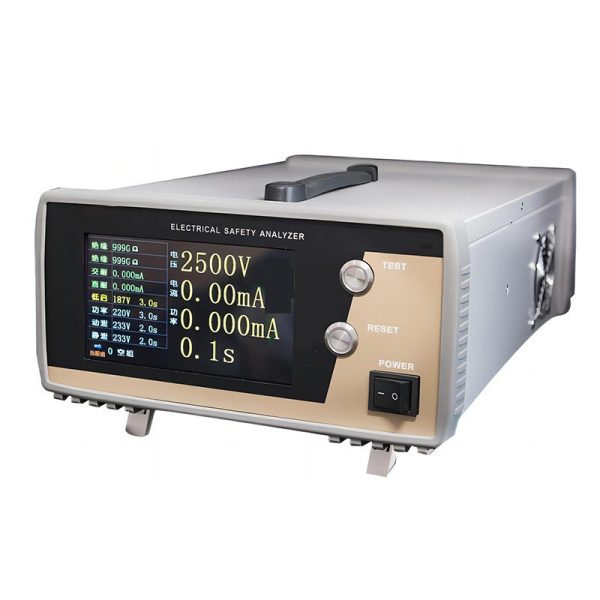

KD7742 AC DC Withstand voltage Insulation tester

Description

AC DC Withstand voltage Insulation tester

KD7742 intelligent voltage insulation tester has AC/DC voltage resistance, insulation resistance and other items of the test and analysis function, can display voltage, current and resistance waveform diagram and trend diagram, in order to more intuitive monitoring and analysis of insulation performance and insulation collapse indicators, suitable for high-demand test and analysis occasions.

The product has the advantages of wide test parameter range (3000V/100GΩ), large capacity (5KV/100mA), high accuracy (1%) and display waveform. Touch screen design, easy to operate, intuitive display, voice broadcast function; Highly integrated functional circuit, small size and light weight; Test data local cache, through WiFi communication and host computer software, support multiple instruments to connect to a computer, to achieve the upload, storage and analysis of test data, the software also has interface monitoring, off network transmission and other practical functions.

AC DC Withstand voltage Insulation tester
1, small size:
Portable design: Machine size 132×284×470 (mm), 3U height, 15Kg weight;
7 inch color touch screen, large font display measured values.
2, full function:
With insulation resistance, AC/DC voltage resistance and other test functions, a variety of choice combination.
3, high precision:
Test accuracy 1%
4. Fast speed:
The switching speed is less than 0.1S, the service life is long and the reliability is high.
5, wide range:
Insulation resistance test voltage 100-3000V (optional 6000V), the test range of 100GΩ;
Small voltage breakdown current can be accurately measured.
6, more compliance:
Voltage capacity 500VA (5KV/100mA, short time 200mA peak);
With DC voltage resistance and arc detection function.
7, functional and practical:
With voltage, current, resistance and other parameters of the waveform diagram and trend diagram display function;
With voice broadcast function.
8. Informatization:
Test data is stored locally;
Through WiFi communication and host computer software, one computer connects to multiple instruments, uploads, stores, exports and analyzes test data;
Provides the remote upgrade function.
9. Safer
With ground detection and leakage, overcurrent, overheating and other protection functions;
Residual power quick release function to ensure the safety of testers.
10, easy to operate
7 inch color touch screen, index setting interface, easy to use, intuitive display;
Built-in rich help information, convenient operator training on the job;
There are two modes of administrator and tester, administrator preset parameter permissions, testers only use permissions, can not be changed.
11. Easy maintenance
Functional circuit modular design, simple and fast troubleshooting, solve after-sales problems;
Fault self-diagnosis function, automatic diagnosis report fault module.
