Description

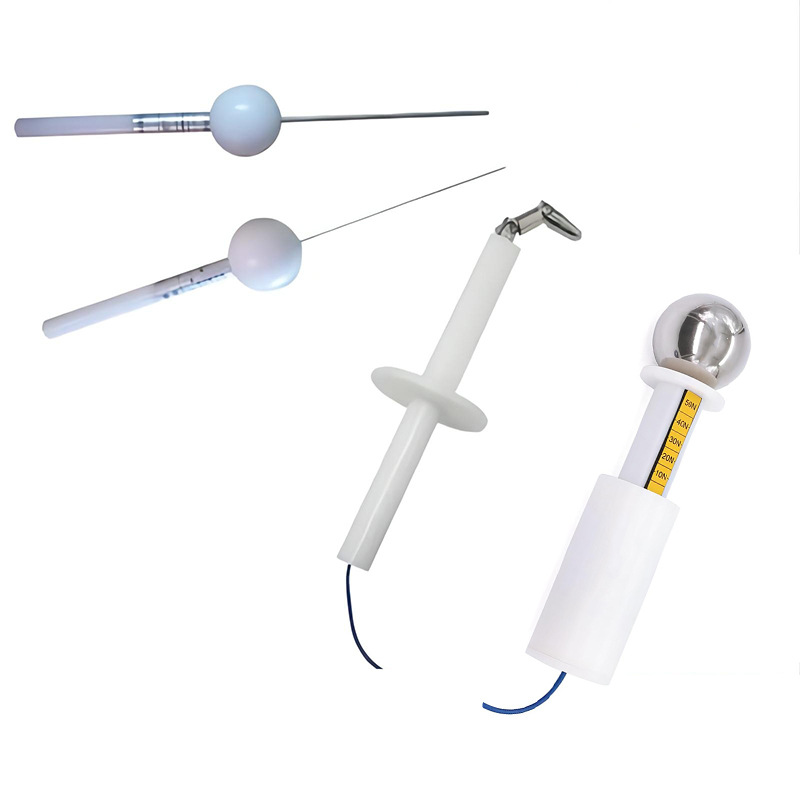

GB4208 IP30 Probe with Thrust
IP1X test probe
Comply with IEC61032 test A, GB16842 test A, GB4208IP1, IEC60529IP1, IEC60065 and other standards.
Used to prevent the back of the hand from touching the protective inspection.
| ball diameter | 50mm |
| baffle diameter | 45mm |
| baffle thickness | 4mm |
| handle diameter | 10mm |
| handle length | 100mm |
| According to IEC61032 Figure 1(Test probe A), GB/T4208-2017 Table 6 (first characteristic number 1) |
IP2X test probe
Product Overview:
In line with GB4706, GB2099, GB4943, GB4208IPX2, IEC61032 Figure 2 Test set B, IEC60884, IEC60335, GB/T16842
Test set B and other standard requirements. Protective inspection used to prevent finger touching or electric shock inspection.
Technical parameters:
| bending finger diameter | 12 mm |
| Length of bending finger | 80mm |
| baffle diameter | 50mm |
| baffle length | 100mm |
GB4208 IP30 Probe with Thrust
IP3X test probe
according to IEC61032,GB4208,GB2099.1, IEC60529 and other relevant provisions of the production.
Technical parameters:
| ball diameter | 12.5mm |
| plate thickness | 4mm |
| Diameter of baffle plate | 10mm |
| handle diameter | 4mm |
| Belt 50±5N thrust. 1/2 |

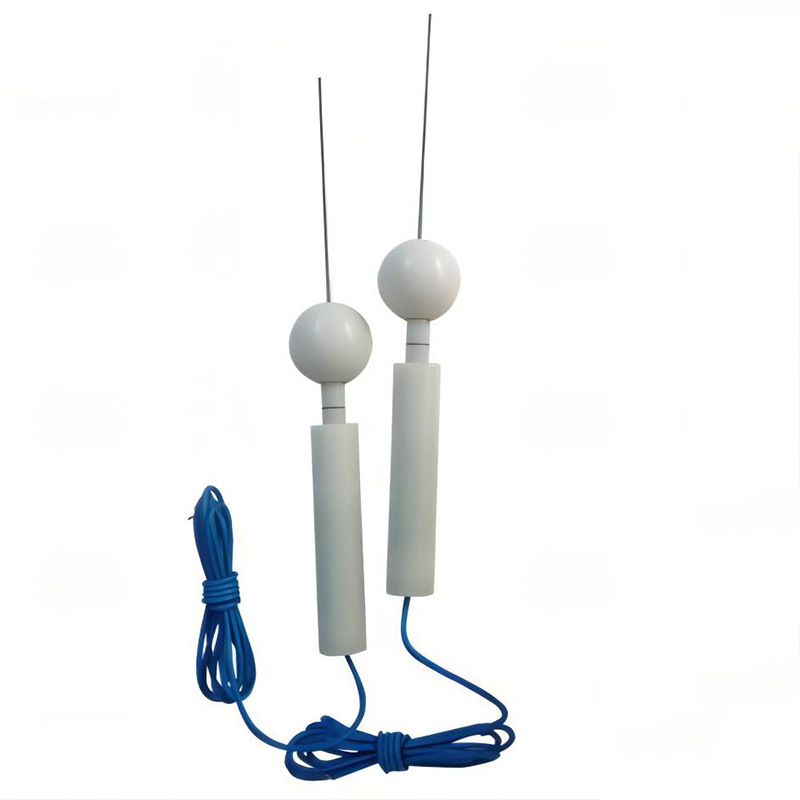

IP4X test probe Product Overview
In accordance with IEC61032 Figure 4 Test D, IEC60529IP3, GB4208IP4, GB/T16842 test D, GB8898, IEC60065, IEC60598,
| Probe length | 100mm |
| probe diameter | 1mm |
| gear ball diameter | 35mm |
| handle diameter | 10mm |
| handle length | 100mm |
| According to IEC61032 Figure 4(Test probe D), GB/T4208-2017 Table 6 (the first characteristic number 4/5/6). Belt 1±0.1N thrust. |
