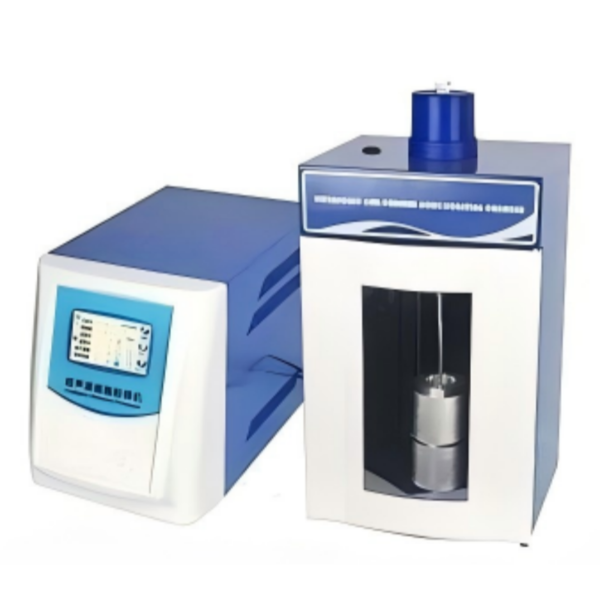

GA-G121 Ultrasonic Cell Disruptor (Touchscreen Version)
Model:GA-G121
- Description
- Inquiry
Description
GA-G121 Ultrasonic Cell Disruptor (Touchscreen Version)
Product Introduction:
The touchscreen ultrasonic cell disruptor utilizes a 4.3-inch TFT touchscreen control and features an upgraded password protection function. It is a multi-functional, multi-purpose instrument that uses ultrasonic cavitation in liquids to perform ultrasonic treatment on various substances. It is used for the disruption of various animal and plant cells, viruses, bacteria, and tissues, and can also be used for emulsification, separation, dispersion, lysis, homogenization, extraction, defoaming, cleaning, preparation and dispersion of nanomaterials, and accelerating chemical reactions.
GA-G121 Ultrasonic Cell Disruptor (Touchscreen Version)
Product Features:
Unique password protection to safeguard your experiments.
Touchscreen keyboard, user-friendly human-machine interface, real-time display of ultrasonic power, operating time, and real-time temperature.
Continuously adjustable ultrasonic power allows for optimization of experimental conditions.
Large TFT screen display, programmable storage of 20 sets of experimental data, allowing for direct recall of experimental conditions, convenient and safe.
Features over-temperature, delay, and fault protection, with independent over-temperature, delay, and fault alarm systems, greatly protecting experimental samples.
Optional RS232 communication interface for upgrading to data transmission with PCs or PLCs for remote control.
GA-G121 Ultrasonic Cell Disruptor (Touchscreen Version)
Main Applications:
The instrument is widely used in teaching, research, and production in biology, microbiology, physics, zoology, agriculture, pharmaceuticals, petroleum, and other fields. It is an ideal tool for experiments with small sample volumes and a large number of samples, such as cell disruption and lysis; protein and nucleic acid extraction; DNA/RNA shearing; nanotechnology research and nanomaterial dispersion; chromatin immunoprecipitation; sample homogenization and emulsification; accelerated dissolution, accelerated chemical reactions, and other sample processing.
GA-G121 Ultrasonic Cell Disruptor (Touchscreen Version)
Technical Parameters:
| Model | GA-G121-A | GA-G121-B | GA-G121-C | GA-G121-D | GA-G121-E | GA-G121-G | GA-G121-F |
| Frequency (kHz) | 20-25 | 20-25 | 20-25 | 20-25 | 19-21 | 19.5-20.5 | 19.5-20.5 |
| Power (W) | 0-150
Continuously adjustable |
0-650 Continuously adjustable |
0-900W Continuously adjustable |
10-1000 Continuously adjustable |
1500 Continuously adjustable |
20-1800 Continuously adjustable |
300-3000 Continuously adjustable |
| Crushing Capacity (ml) | 0.1-150 | 0.1-500 | 0.1-600 | 0.1-700 | 20-1200 | 10-1500 | 100-5000 |
| Input and Display Method | Touch control
(4.3-inch TFT) |
Touch control
(4.3-inch TFT) |
Touch control
(4.3-inch TFT) |
Touch control
(4.3-inch TFT) |
Touch control
(4.3-inch TFT) |
Touch control
(4.3-inch TFT) |
Touch control
(4.3-inch TFT) |
| Login Password Protection | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Random Amplitude Rod (mm) | Φ6 | Φ6 | Φ6 | Φ6or10 | Φ22 | Φ20or22 | Φ35or50 |
| Optional Amplitude Rod (mm) | Φ2、3、8 | Φ2、3、8、 10、12 |
Φ2、3、8、 10、12 |
Φ2、3、8、 10、12、15 |
Φ10、15、20 25 |
Φ10、15、20 |
Φ15、20、25 |
| Sample Temperature Protection (°C) | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 | 0-100 |
| Protection Device | Self-diagnostic function, automatic program error correction, overload and over-temperature protection display, etc. | Self-diagnostic function, automatic program error correction, overload and over-temperature protection display, etc. | Self-diagnostic function, automatic program error correction, overload and over-temperature protection display, etc. | Self-diagnostic function, automatic program error correction, overload and over-temperature protection display, etc. | Self-diagnostic function, automatic program error correction, overload and over-temperature protection display, etc. | Self-diagnostic function, automatic program error correction, overload and over-temperature protection display, etc. | Self-diagnostic function, automatic program error correction, overload and over-temperature protection display, etc. |
| Optional | Computer connectivity, printing, automatic soundproof enclosure | Computer connectivity, printing, automatic soundproof enclosure | Computer connectivity, printing, automatic soundproof enclosure | Computer connectivity, printing, automatic soundproof enclosure | Computer connectivity, printing, automatic soundproof enclosure | Computer connectivity, printing, automatic soundproof enclosure | Computer connectivity, printing, automatic soundproof enclosure |
GA-G121 Ultrasonic Cell Disruptor (Touchscreen Version)
Optional amplitude probe specifications:
| Model: National Standard | Imperial Standard | Frequency | Power Reference Range | Crushing Capacity Reference |
| Φ2 | 1/12″ | 20-25KHz | min-150W | 0.2-5ml |
| Φ3 | 1/8″ | 20-25KHz | min-250W | 3-10ml |
| Φ6 | 1/4″ | 20-25KHz | 20-400W | 10-100ml |
| Φ10 | 5/12″ | 20-25KHz | 100-600W | 30-300ml |
| Φ12 | 1/2″ | 20-25KHz | 200-900W | 50-500ml |
| Φ15 | 5/8″ | 20-25KHz | 300-1000W | 100-600ml |
| Φ20 | 4/5″ | 19.5-20.5KHz | 400-1100W | 100-1000ml |
| Φ22 | 5/6″ | 19.5-20.5KHz | 400-1100W | 200-1000ml |
| Φ25 | 1″ | 19.5-20.5KHz | 800-1500W | 500-1200ml |
