Description

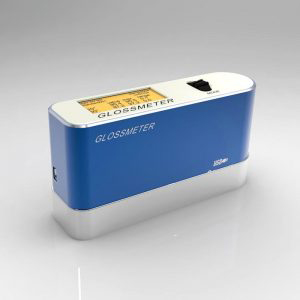

GA-FMN268 Surface Gloss Meter
I. Introduction:
FMN268 series mirror gloss meter is a fully intelligent model, its technical parameters conform to the national standard GB9754-88, GB9966.5 and international standard ISO2813.
This product is suitable for the measurement of gloss of paint, paint, ink, plastic, stone, paper, tile, enamel and other flat products.
GA-FMN268 Surface Gloss Meter
Second, instrument features:
1. The ultra-small design can be put in the pocket, more convenient to carry, is the current domestic small volume, light weight gloss meter.
2. Ultra-power-saving design, using a No. 5 battery (rechargeable battery or alkaline battery can be used), you can operate. About 100,000 data points can be measured.
3. Statistical measurements can be made from all three angles.
4. Switch between four languages.
5. USB data transmission, plug and play, easy to make measurement reports.
GA-FMN268 Surface Gloss Meter
Iii. Precautions:
1. Avoid direct light during use, otherwise the measurement accuracy will be affected.
2. The standard board of the instrument should be kept clean. Do not touch the surface with your fingers. If the surface is stained, it will lead to increased instrument error and inaccurate reading
Wipe with head paper or anhydrous ethanol.
3. Because of the high stability of the instrument, the instrument does not need to be calibrated frequently, it is recommended to re-calibrate once after continuous use for 2 hours.
4, the battery should be replaced in time, otherwise long-term storage, the old battery may flow out of waste liquid, causing damage to the instrument.
GA-FMN268 Surface Gloss Meter
Parameter
| measuring angle | 20°60°85° |
| measuring area（mm） | 20°（10×10）60°（10×20）85°（8×30） |
| window size（mm） | 11×38 |
| light source | D65 |
| Statistical function | 10 sets of data per Angle |
| data interface | USB plug and play |
| power supply | One 5 (AA) alkaline battery or rechargeable battery |
| boundary dimension（mm） | 137x38x64 |
| Weight | 320g |
| service conditions | environment temperature -10℃~~60℃ |
| Ambient humidity 85% (no condensation) | |
| measuring range（GS） | 20°（0~99.9 100~2000）60°（0~99.9 100~1000）85°（0~99.9 100~160） |
| repeatability（GS） | 0.2（0~99.9）0.2%（100~2000Gs） |
| reproducibility（GS） | 0.5（0~99.9）0.5%（100~2000Gs） |
| pc software design | My Gloss 3.0 |
