Description

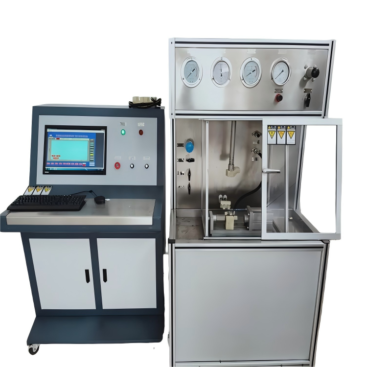

GA-E110 High-Pressure Hose Hydrostatic Testing Machine
I. Product Positioning

The high-pressure hose hydrostatic testing machine has a test pressure range of 0-30 MPa and uses air or nitrogen as the test medium.The output pressure can be adjusted by setting the drive air pressure regulator. The pump automatically stops when the set pressure is reached and resumes operation when the pressure drops.

GA-E110 High-Pressure Hose Hydrostatic Testing Machine
II. Features

1. Equipped with a gas-driven automatic booster pump, easily achieving arbitrarily adjustable and controllable output pressure.
2. Advanced technology and reasonable structural design. Features include small size, light weight, and an aesthetically pleasing appearance.
3. All pressure-bearing parts use standard parts from internationally renowned brands, with no welded connections, making disassembly easy, ensuring high safety factor, long service life, and easy maintenance.
4. Driven by compressed air, with a completely explosion-proof design.
5. Continuous start and stop without limitations or adverse effects;
6. The pneumatic piston ring and other pneumatic components do not require lubrication during operation, saving operating costs and preventing oil and gas pollution;
7. Easily integrated into automatic control systems;
8. At any predetermined pressure, it consumes no energy and generates no heat, eliminating the risk of sparks and flames;
9. Linear pressure output, easy for manual control;

GA-E110 High-Pressure Hose Hydrostatic Testing Machine
III. Parameters

Test Pressure: 0-30 MPa
Adjustable Pressure Test Medium: Air, Nitrogen
Pressure Control Accuracy: 2% of the upper limit of the test pressure value, -1% of the lower limit
Pressure Source Range: 0.1-0.69 MPa
Control Method: Computer control or manual control
Test Curve: Control software automatically displays the curve, real-time display, and can be zoomed in and out
Pressure Control Method: Pneumatic drive or hydraulic drive

GA-E110 High-Pressure Hose Hydrostatic Testing Machine
IV. Test Standards

EN ISO1402-1996/NF T47202-1996 Rubber and Plastic Hose Assemblies Hydrostatic Test Standard
GB/T5563 Hydraulic Hose Assembly Test Standard
GB/T1987
