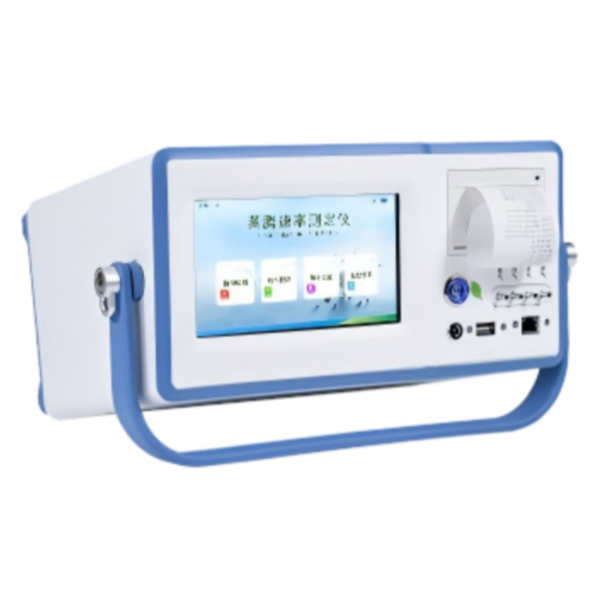

GA-C111 Plant Transpiration Meter

Description

GA-C111 Plant Transpiration Meter

Instrument Introduction:

Plant transpiration rate refers to the speed at which water, passing through the plant’s body and through its surface (mainly leaves), is released into the atmosphere as gas. Transpiration generates transpiration pull, the primary driving force for passive water absorption and transport in plants, especially important for tall trees. Transpiration promotes the transport of substances in the xylem sap, allowing mineral salts from the soil and substances synthesized by the roots to be transported and distributed throughout the plant along with water absorption and flow. Transpiration also lowers the plant’s temperature, preventing leaf burn. Normal transpiration facilitates CO2 assimilation because stomata are open during transpiration, providing a pathway for CO2 to enter the leaves. Therefore, measuring plant transpiration rate is of great significance for agricultural research, teaching, horticultural research, and forestry research.

GA-C111 Plant Transpiration Meter

Test Specifications:

Leaf Temperature
Photosynthetically Active Radiation (PAR)
Air Temperature
Air Humidity
Transpiration Rate
Stomatal Conductivity

GA-C111 Plant Transpiration Meter

Technical Specifications

Air Temperature: High-precision digital temperature sensor, measurement range: 0-50℃, resolution: 0.1℃, error ±0.2℃
Leaf Temperature: Platinum resistance thermometer, measurement range: 0-50℃, resolution: 0.1℃, error ±0.2℃
Humidity: High-precision digital humidity sensor, measurement range: 0-100%, resolution: 0.1%, error ≤±3%
Photosynthetically Active Radiation (PAR): Silicon photovoltaic cell with correction filter, measurement range: 0-2500 μmol/m²/s, accuracy <5 μmol/m² ㎡/sec
Flow rate: Glass rotor flow meter
Imperial chamber size: Standard size 55×20mm, other sizes can be customized according to customer requirements
Operating environment: Temperature 20℃—50℃, relative humidity: 0-100% (no water vapor condensation)
Power supply: DC7.4V lithium battery, can work continuously for 7-9 hours
Data storage: 2GB SD card
Display: 320×160 dot matrix, Chinese interface
Dimensions: 260×260×130mm
Weight: Main unit 3.25kg.
