Description
GA-BR10K Smoothness Meter
Introduction:

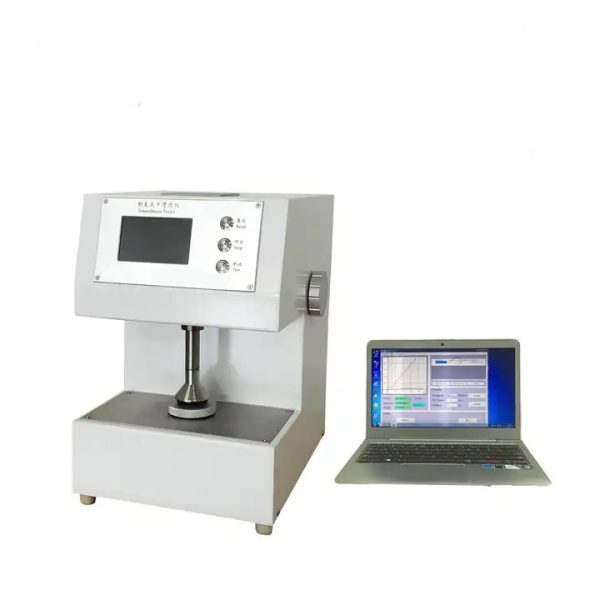

GA-BR10K Smoothness Tester is a microprocessor-controlled instrument for the determination of smoothness of paper and board according to the Bekk Method. It is to test the smoothness of the paper or cardboard. According to the sample smoothness, This instrument has three gears that can test variety of samples quickly and accurately.
Standards:
ISO5627,GB456,QB/T1665
GA-BR10K Smoothness Meter
Features:
1.Adopt imported high precision sensor and oil-free vacuum pump, low noise, high precision.
2.Adopt imported electromagnetic valve and stainless steel vacuum chamber, good sealing and advanced sealing technology, test results will be much more accurate and stable.
3.High resolution color touch screen operation system, automatic proceed test. The micro printer output, show the results of measurement and statistics. Friendly human-computer interface make cooperation simple and convenient. All are reflected the humanity design thought.
4. According to the sample smoothness, This instrument has three gears that can test variety of samples quickly and accurately.
Technical Parameters:
|
Measure Range
|
(1~9999)s
|
||
|
Timing Accuracy
|
Timing1000s, error is less than ±1s
|
||
|
Vacuum Vessels
|
The large vacuum container:(380±1)ml
The small vacuum container:(38±1)ml
|
||
|
Contact Pressure
|
(100±2)kPa
|
||
|
Vacuum Accuracy
|
±0.07kPa
|
||
|
Dimensions
|
300×370×420mm
|
||
|
Weights
|
About 37kg
|
||
|
Power
|
AC220V,50Hz
|
||
