Description

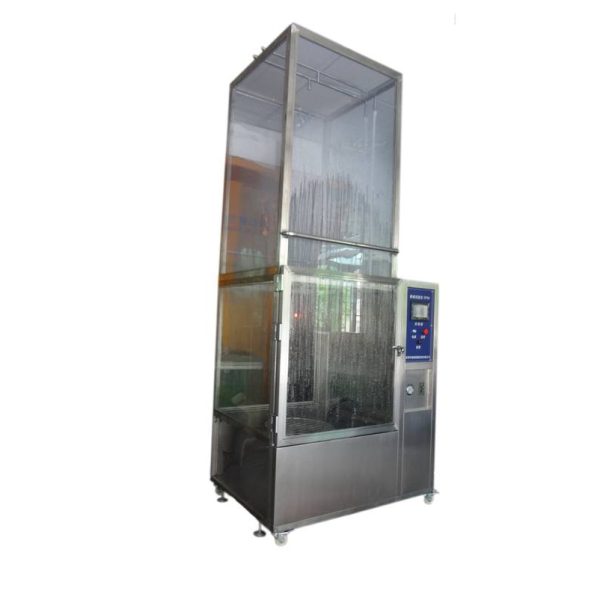

Structure principle: The basic design principle of the equipment: a water tank is set at the bottom through the stainless steel pump inside the right control box to pump water and pressure, and then sent to the upper nozzle, the nozzle spray water vertically to the sample above the turntable, and then scattered to the inside of the water tank, so as to form a water circulation system. Water east outlet design flowmeter, pressure gauge, solenoid valve and other control components. The inner box is equipped with a waterproof turntable and the speed is controlled on the panel.
Materials: 1, nozzle: stainless steel pipe 3MM thick 2, water tank :304 stainless steel 3, sealing plate material: the lower layer of rigid glass 6MM thick, the upper glass PC plastic transparent plate (light weight, easy to install) 4, frame material :304 stainless steel square, sand surface (professional wire drawing) 5, electrical control accessories selected from France Snide, Omron, Taiwan Shiyan, Japan Fuji and other international well-known brands 6, stainless steel pump: southern high pressure multi-stage centrifugal stainless steel pump 4KW 7, high pressure solenoid valve: imported high pressure solenoid valve 220V 8, high pressure water pipe: hydraulic pressure hydraulic pipe 6 points 9, voltage converter: Taiwan Delta inverter 4KW 10, electronic flow meter: high pressure electronic flow machine high pressure high temperature
| Total size of the laboratory | depth 1000x width 1200x height 3300mm |
| Inner box size | length 800x width 800mmx height 2600mm |
| Spray system | composed of water pump, water pressure gauge, fixed nozzle support, area :800x800mm |
| Install a water spray head. One IP6 nozzle | |
| pipe diameter | six high-pressure hydraulic pipe |
| spray hole diameter | 1-Φ 6.3mm IP6(grade) |
| Water spray pressure | 1000kpa equivalent to 10kg (adjusted according to volume) |
| spray flow | IP6(grade)75±5(L/min) |
| turntable | 500MM touch screen can display the turntable speed |
| water spraying duration | 3, 10, 30, 9999min(adjustable) |
| running time control | 1M~9999min(adjustable) |
| water circulation system, to ensure the recycling of water | |
| by the water surface | the top surface of the product |
| water pressure gauge, can display water pressure | |
| control system | “dark horse” touch screen control system. |
| The test box is made of tempered glass as a waterproof wall and stainless steel square pass as a bracket | |
