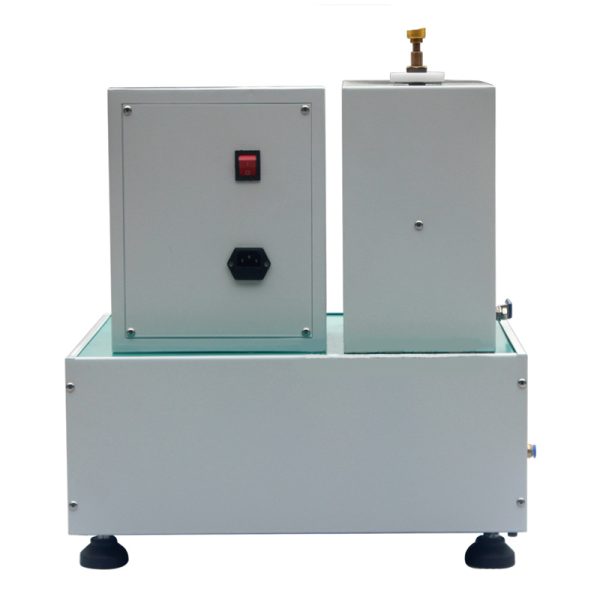

GA-8502 Breaking Strength Testing Machine
Product introduction:
In line with relevant standards, the use of pneumatic clamp sample, liquid crystal display, suitable for cardboard, corrugated cardboard and other sheet plate breakage determination.
Adoption criteria:
ISO 2759: Determination of the resistance to breakage of paperboards
GB/T 1539: Determination of cardboard breakage;
QB/T 1057: paper and board breakage tester.
GA-8502 Breaking Strength Testing Machine
Feature
1. After the board is crushed, it will automatically stop and return to the initial position;
2. Fully automatic one-click operation;
3. Can store 50 groups of data at the same time;
4. Equipped with micro printing, can print test results;
5. Equipped with emergency stop button to improve operation safety;
6. With pressure gauge, monitor the pressure at any time;
7. Hd LCD display.
8. Change the traditional glycerin + water practice, use silicone oil, the machine is not easy to rust, extend the life of the machine.
GA-8502 Breaking Strength Testing Machine
Parameter
| Induction mode | pressure transducer | |
| Savings outcome | With printing function, 10 groups of data can be printed to automatically calculate the average value | |
| display usage | Hd LCD display, digital A/D value feed rate 100 times /S, high test accuracy | |
| unit | kgf/cm2 、Lb/in2 、 Kpa（With unit switching function） | |
| measuring range | 250～6000kPa | |
| resolution ratio | 1kPa | |
| accuracy of measurement | indication error | Better than ±1%FS |
| varation of indication | Better than ±1% | |
| Oil pressure velocity | high pressure cleaner 170±10ml/min | |
| Film resistance | Protrusive 10mm, 170kPa ~ 220kPa Protrusions 18mm, 250kPa ~ 350kPa |
|
| Grip ring material | stainless steel | |
| Gripping force | >690Kpa （adjustable） | |
| Inner diameter of upper clamping ring hole | φ（31.5±0.05）mm | |
| Inner diameter of lower clamp ring hole | φ（31.5±0.05）mm | |
| Upper chuck diameter: | 95mm | |
| Lower chuck diameter: | 135mm | |
| Hydraulic oil | silicone oil | |
| volume | 430*530*520mm | |
| weight | about 70KG | |
| power supply | 1∮,AC220V | |
| standard configuration | 5 pieces of rubber film, 1 wrench, 10 correction pieces, 1 bottle of silicone oil | |
