Description

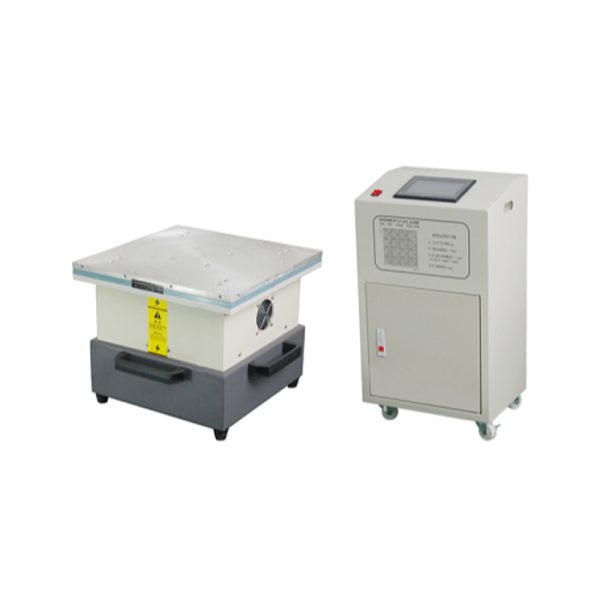

GA-7003-B Electromagneticvertical vibration tester
1.Introduction
Product overview: electromagnetic vibration test series are widely applicable to national defense, aerospace, communications, electronics and automobiles
Home appliances and other industries.This type of equipment is used to detect early faults, simulate actual working condition assessment and structural strength test. The product has a wide range of applications, a wide range of applications, remarkable test results and reliability.
◎ humanized operation and control, the use of professional control software control, make the equipment work more stable, more reliable
◎ the whole machine adopts compound industrial material manufacturing, precision processing, ultra-quiet
◎ the panel is made of magnesium aluminum alloy material, which can completely isolate the magnetic field interference and effectively prevent magnetizing the measured object
◎ frequency sweep and fixed frequency operation mode, to meet the test requirements of different industries
◎ high-precision frequency output, four-point synchronous excitation, even table vibration
◎ strong anti-magnetic and
anti-interference ability
◎ it has a safe and reliable protection function
◎ the table body adopts high efficiency and low noise fan for cooling, ensuring a long time continuous operation
◎ it has constant vibration amplitude and constant acceleration vibration
◎ the system is equipped with a high-precision vibration sensor to collect the acceleration, amplitude and frequency in real time

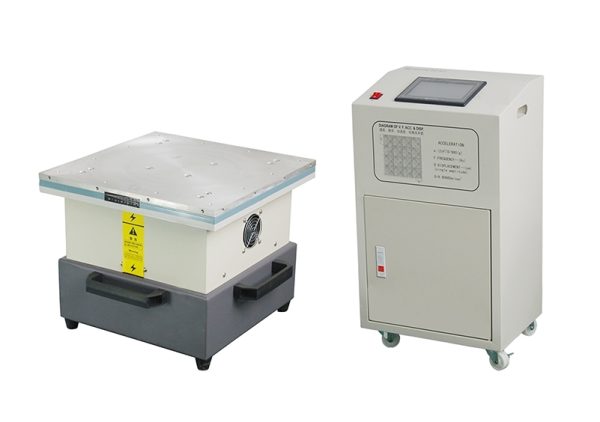

GA-7003-B Electromagneticvertical vibration tester
Technical parameters
| Frequency modulation range (Hz) | 5~500 | Sweep frequency range (Hz | 5~500 |
| Maximum acceleration (m/s2) | 170 | Maximum test load (kg) | 40 |
| Maximum no-load displacement (mmp-p) | 0~2.5 (automatic adjustment) and 0~5 (manual adjustment) | Vibration waveform | sine wave |
| Vibration axial direction | vertical | Excitation mode | electromagnetic excitation |
| Vibration control mode | closed loop control | Data acquisition method | vibration data acquisition instrument + acceleration sensor |
| Acceleration sensor | 1 (built-in vibration table body) | ||
| Total weight (kg) | 75 | Table size W.D.H (mm) | 550×550×43 |
| Table size W.D.H (mm) | 550×550×385 | Control cabinet size W.D.H (mm) | 420×300×750 |
