GA-5055 Packaging Breaking Force Tester
- Description
- Inquiry
Description

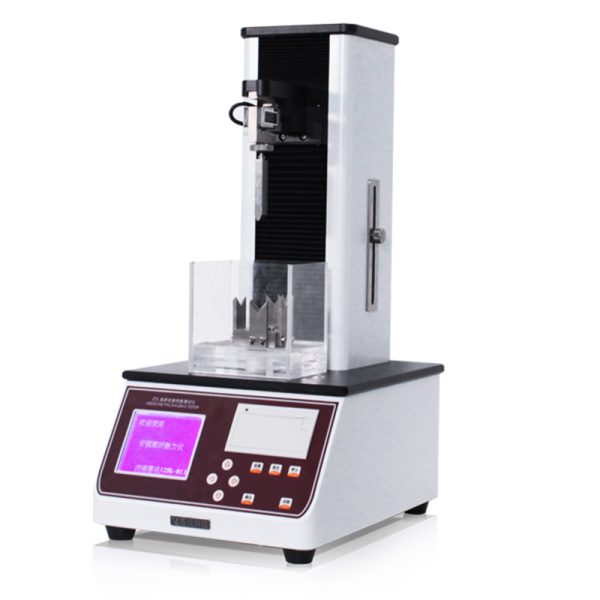

Packaging Breaking Force Tester
Test Standard
GB2637, YBB00332002 standard on the breaking force test of ampoule drug packaging requirements
Product Character
- Large liquid crystal display test process, PVC operation panel, humanized design
- Professional software can connect computer to save, analyze and print data
- Imported sensors are used to ensure the accuracy of test results
- Compact, compact and humanized structure design
- The speed of the lead screw drive system is adjusted at will to ensure the accuracy of test speed and displacement
- Equipped with a micro printer to quickly print test results
- Professional and humanized fixture can be replaced arbitrarily for different size samples
- Intelligent configuration, such as limit protection and automatic return, ensures user’s operation safety
Packaging Breaking Force Tester
Test Principle
The sample was clamped between two clamps, and the two clamps made relative movement. The ampoule bottleneck was separated from the flat body through the special clamps. The force change and displacement change during this process were tested by the instrument, and the corresponding force value data was obtained.
Basic Application
It is suitable for testing breaking force in ampoules, lipstick and lipstick.
Packaging Breaking Force Tester
Technical Specification
| Item | Specification |
| Test range | 0-500 N（can choose 100N、200N、300N） |
| Test Accuray | 0.5level |
| Test speed | 10 mm/min（1-500 mm/minstepless speed change） |
| Speed accuracy | ±2% error |
| Support distance | 36mm、60mm |
| Out size | 330 mm (L) × 410 mm (W) × 680 mm (H) |
| Power | AC 220V 50Hz |
| New weight | 27 kg |
