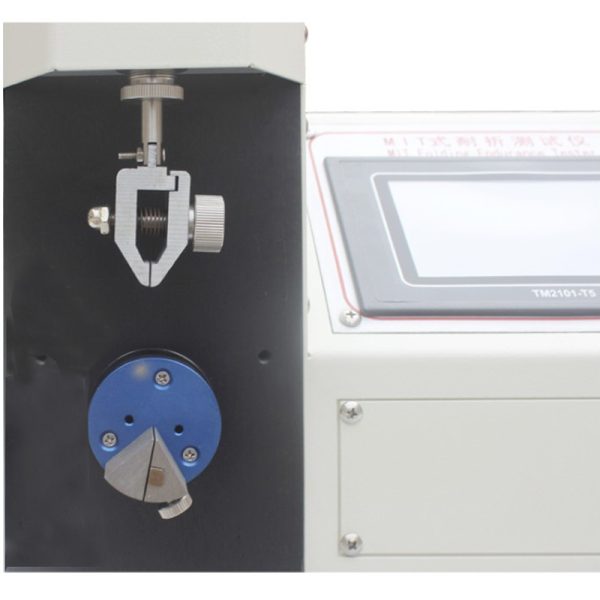

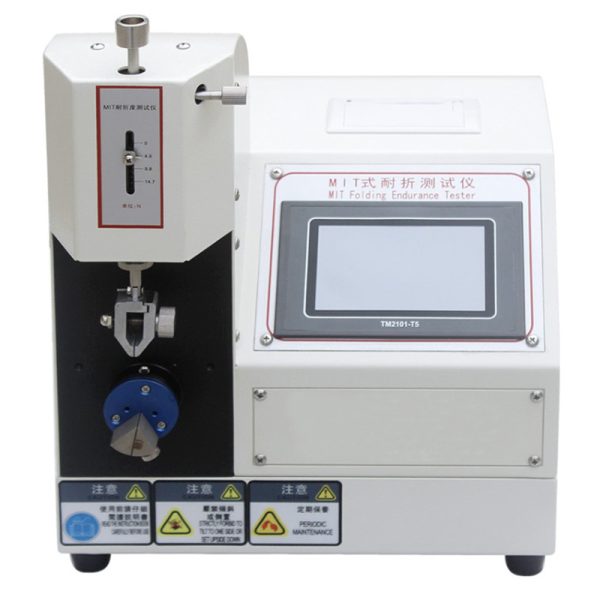

GA-5027-B MIT Folding Endurance Tester
- Description
- Inquiry
Description
GA-5027-B MIT Folding Endurance Tester
Test standard
ISO 5626, determination of folding resistance of paper
APPI-T423PM, ASTM-D2176, JIS-P8115, GB/T2679.5
GB / T2679.5-1995 Determination of folding resistance of paper and paperboard (MIT folding resistance meter method)
Paper and board—Determination of folding endurance (MIT tester)
GA-5027-B MIT Folding Endurance Tester
Introduction
MIT folding tester is used to test the paper folding fatigue performance test tool, through this test instrument can test the paper folding times and folding resistance.The instrument can also be used to test the flexural fatigue performance of textiles, plastic film, wire and other products.It is an ideal testing tool for paper making, packaging, textile and wire products.
GA-5027-B MIT Folding Endurance Tester
Technical Specification
| Measuring range | 0~99999 |
| Folding angle | Left and Right,Each 135±2° |
| Testing speed | 175±10Times/Min |
| Spring tension | 4.9N,9.8N,14.72N |
| Printer | Modular all-in-one thermal printer |
| Working environment | Temperature (0 ~ 35) ℃, humidity <85% |
| Dimension | 300*350*450mm |
| Weight | 30KG |
