Description

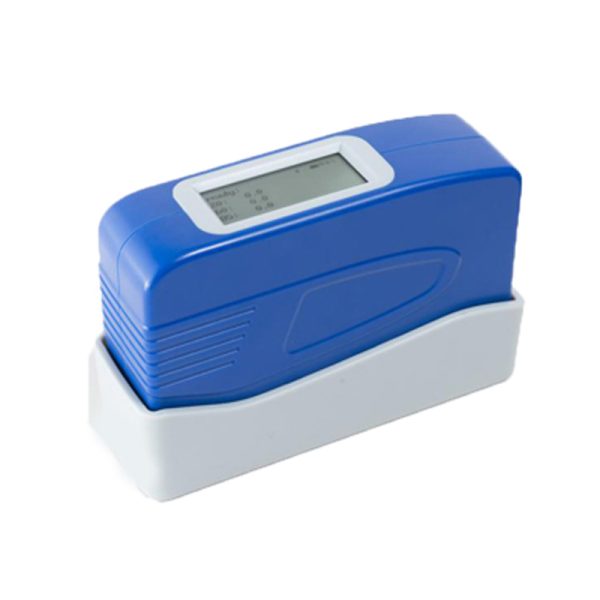

Three Angle Gloss Meter
1.Brief Introduction
The technology parameter of GA-3902 Glossmeter is complete according with state standard GB9754-88、GB9966.5 and international standard ISO2813, all items of the performance meet the first class work requirements of state JJG696-2002 (Lens Luster Degree Instrument Measure Test Regulations) .
Three Angle Gloss Meter
2.Applications
∵ The surface luster measure for printing ink, paint, bake lacquer, coating and woodwork
∵ The surface luster measure for construction decoration materials: marble; granite; glass
chemical polishing brick and pottery brick
∵ The surface luster measure for plastic and sheet
∵ The surface luster measure for other non-metal materials
Three Angle Gloss Meter
3.Instrument Characteristics
∵ Fine, light stylish appearance, easy to carry
∵ Completely intelligentized design, single key operation, convenient to use
∵ Automatic adjustment, no need to be hand adjustment
∵ Multi-angles, choose what you want
∵ Long life-span lamp- house, no need to change
∵ Precise measure, excellent repetition performance
∵ LCD digital display, with backlight, accurately display the remainder of the battery
∵ There is buzz sound during operation
∵Turn off automatically
∵Can save lots of data and every data can check the measured time
∵USB interface, and the data can be read by file
Three Angle Gloss Meter
4.Technology parameter
| Model | GA-3902 | GA-3903 |
| Projecting angle | 20° 60° 85° | 60° |
| Save data | 734 | 1245 |
| Measure Range | 0-200GU | |
| Spot（mm） | 20°: 10×10 60°:9×15 85°:5×38 | |
| Value error | ±1.2GU | |
| Environment Temperature | 0℃ – 40℃ | |
| Relative humidity: | ≤ 85% | |
| Power | 1.5V | |
| The Measuring window size: | 11*35（mm） | |
| Dimension: | 136mm*91mm*46mm | |
| Weight | 380g | |
