GA-2802-B Air Leak Tester

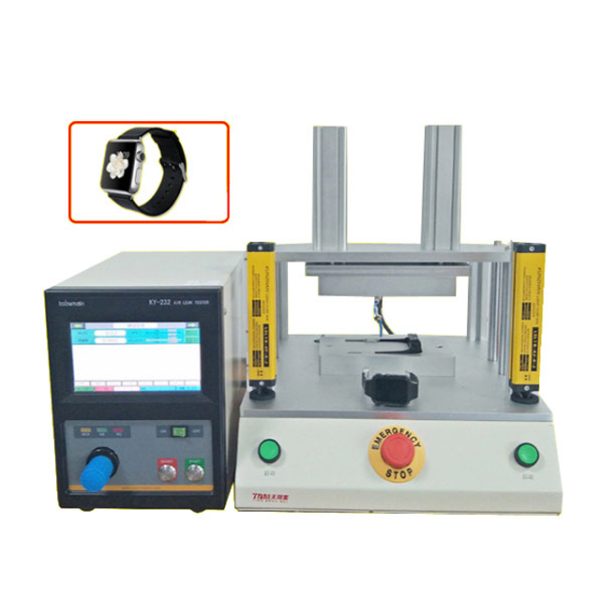

GA-2802-A Air Leak Detector GA-2802-A Air Leak Detector
GA-2803 Air Tightness Leak Detector GA-2803 Air Tightness Leak Detector

$20,000.00

Category:

Description

GA-2802-B Air Leak Tester

Use

GA-2802-B series air tightness detector adopts the principle of direct pressure and USES air as the medium to pick up the leakage of the product.The working principle is to inflate (pump) the test product to the specified air pressure (vacuum), then close the valve, after a period of stability, measure the change of air pressure during the test period, and calculate the leakage through conversion.With its high precision and complete function, this instrument is widely used in sealing testing of open products or parts of closed products.



GA-2802-B Air Leak Tester

Functional features

  • 7 inch touch screen display, Chinese and English language switch.
  • High resolution 24-bit pressure AD converter.
  • Large leakage, small leakage 2 alarm functions.
  • OK,NG computing function.
  • The XY axis curve shows the recording of test pressure and leakage.
  • Test pressure units KPa, mbar, Psi, KGF /cm2,inn hg,mm hg
  • Leakage unit Kpa,ml/min
  • 8 sets of channel parameters save, can be external toggle program
  • Usb disk history storage, query, print, delete, screenshot
  • PLC input and output I/O interface, can connect automatic equipment
  • Volume measurement of test products (optional)
  • RS485 communication interface (optional)
  • Barcode scanner interface (optional)
  • Microprinter interface (optional)



GA-2802-B Air Leak Tester

Application fields

Automotive industry, aerospace industry, home appliance industry, medical industry, bathroom industry, packaging industry, new energy industry.



GA-2802-B Air Leak Tester

Technical Specification

Testing way 1.Leak test for open product (air pressure attenuation)
2.Leak test for closed product (vacuum attenuation)
Test pressure display Unit：kpa,mbar,psi,kgf/cm2,in Hg,mm Hg
Display range：±9999.99
Time 0.1s-1999.0s
Channel 8（1-8CH）
I/O interface 5 input signals / 6 output signals
USB interface 1 pcs standard assignment /(1 option)
RS485interface 1 pcs(optional)
Printer interface 1 pcs(optional)
Connecting piping Outer diameter 6mmPU tube
Power DC 24 ±5%
Rate of power 40W
Size D400*W210*H295（mm）
Weight About 8KG
Test gas source 0.4MPa-1.0MPa Clean dry compressed air source
Ambient temperature, humidity Temperature for 5-40 ℃, 80% RH, no condensation
