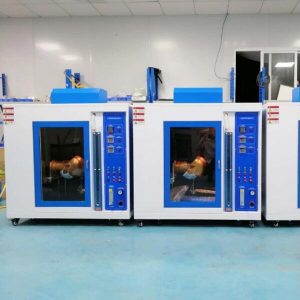

GA-2502 Mask Flame Retardant Performance Tester
- Description
- Inquiry
Description
Testing standard:
Medical surgical mask
The flame retardant tester of surgical mask produced by our company is used for the flame retardant tester of surgical mask.Medical surgical mask meets the test standard yy0469-2011 EN149.
1.Automatic ignition.
2.Digital display of flame temperature.
3.Automatic movement for detection.
Technical parameters of detector
1.Flame temperature: 800±50℃.
2.The movement speed of the head mold is 60±5mm/s.
3.The flame height is 40±4mm.
4.The distance between the combustion top and the bottom of the sample is 20±2mm
| Product name | Mask flame retardant tester | |
| Basic principle | The combustion test was carried out by adjusting the propane unit | |
| flame temperature | 800±50℃ | |
| Time accuracy | 0.1s | |
| test medium | dimethylmethane | |
| control mode | utomatic control | |
| Scope of application | Surgical masks | |
Configuration list
| Name | Unit | Qty | Remark |
| Temperature sensor | Pcs | 1 | Collect the temperature |
| Chamber structure | Pcs | 1 | powder coating |
| Metal head | Pcs | 1 | Metal head |
| Time relay | Pcs | 1 | Timer |
| Electrical appliances | set | 1 | Zhengtai |
| Flame regulator | Pcs | 1 | Adjust flame temperature and height |
| Motor unit | Pcs | 1 | With brake positioning motor |
