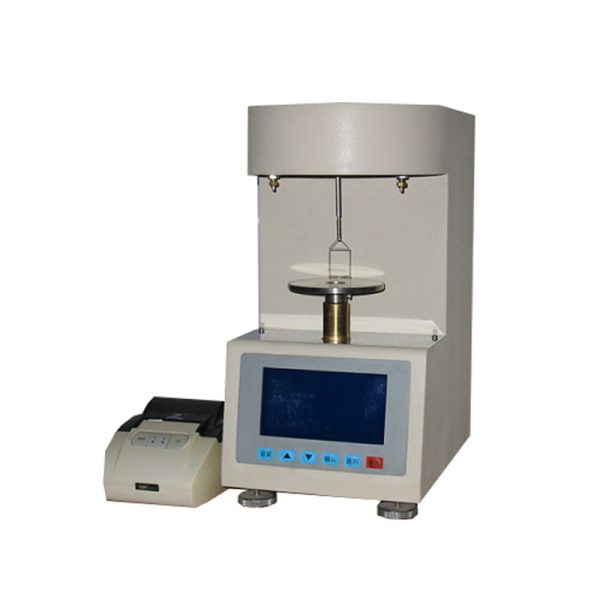

GA-1526 Automatic Tension Tester

Description

GA-1526 Automatic Tension Tester

Instrument features:

Found GB6541-86 (ISO6295 – 1983) The method of requirements, using the ring method under non-equilibrium conditions, measuring the liquid surface tension, and mineral oil with water interfacial tension can be a reliable indication of the hydrophilic the presence of oxides. Using the latest digital processing technology, the rapid response capability of the instrument and the anti-jamming capability, the Chinese interactive menu, simple and friendly man-machine interface. And with desktop-style miniature thermal printer can automatically print the test results.

Scope: electricity, chemicals, pesticides, ink, ink industry

GA-1526 Automatic Tension Tester

Technical parameters:

Applicable standards: GB6541-86 ISO6295-1983

Measuring range: 0 ~ 200mN / m

Movement speed: 0.3 ~ 0.4mm / S

Sensitivity: 0.1mN / m

Accuracy: ± 0.3mN / m

Suitable temperature: 10 ~ 40 ℃

Applicable humidity: ≤ 80%

Power Supply: AC 220 ± 10% 50Hz

Power consumption: 45W

Dimensions: 185 × 310 × 38
