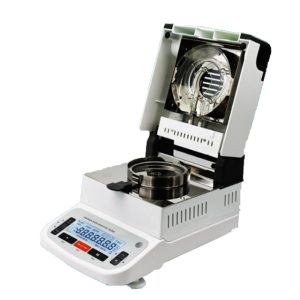

GA-1011-A Moisture Meter

Description

GA-1011-A Moisture Meter

Advantage：

1 instead of the national standard oven method, the operation is simple, greatly shorten the test time, up to 10 times the efficiency of the work

2 high precision (imported gold plated ceramic weighing sensor) high precision, long life, stable

3 alloy metal base, so that the moisture meter is stable and reliable, reduce the interference of external factors

4.LCD display, data show rich (curve, time, real-time temperature, moisture, solid content, program module)

5 save multiple sets of data, do not repeat the test set, at any time, a variety of operating options, to meet the different requirements of sample measurement

6.standard RS232 communication interface – easy to connect to the printer, PC and other peripheral equipment

7.Direct heating from the inside of the substance, Mead science and technology R & D personnel design excellent and unique temperature control and heating system, the heating is uniform, cycling and balance formation. Annular quartz tungsten halogen ring infrared lamp heating mode, real-time monitoring of water loss is more accurate result.

GA-1011-A Moisture Meter

Applicable industry:

Institute, University, Institute, Institute of metrology, enterprises and institutions

Widely used in various industries such as plastic, food, feed, powder, tobacco, paper, food (dehydrated vegetables,

Meat, noodles, flour, biscuits, pies, aquatic products processing, tea, beverages, cereals,

Chemical raw materials, pharmaceutical, textile raw materials and so on, the sample contains free water for testing.

GA-1011-A Moisture Meter

Parameters：

Model Number		GA-1011-610A	GA-1011-720A	GA-1011-100A
Max.capacity (g)		120	120	120
Capacity Readability (g)		120-0.005	120-0.001	120-0.0001
Measure range		0.01%-100%	0.01%-100%	0.001%-100%
Repeatability (Standard Error)	>10g	±0.01%		±0.001%
	>2g	±0.05%		±0.005%
Operational Temperature Range (℃)		13~25
Calibration Way		Temperature calibration, External weights calibration
Pan Diameter (mm)		Φ90
Heating mode		Standard
Result Show		Moisture content, solid content, moisture regain, weight after drying, real-time temperature, moisture content curve
External Dimension (L*W*H mm)		310*205*200
Baud Rate Options		300、600、1200、2400、4800、9600
Display		LCD liquid crystal display		LCD liquid crystal display
Heating Temperature Range (℃)		60-160
Drying Process		Standard heating, Step heating, Weight-lost heating
Moisture Display Mode		Relative Moisture
Stop Way		Automatic stop, Manual stop, Timing stop
Setting Time		0~99 minutes, interval 1 minute
Heating source		Ring halogen lamp
Sensors		Electromagnetic force transducer
Display		LCD Liquid Display
Equipment net weight		4.5kg
Outside size		310*195*197(L*W*H)
