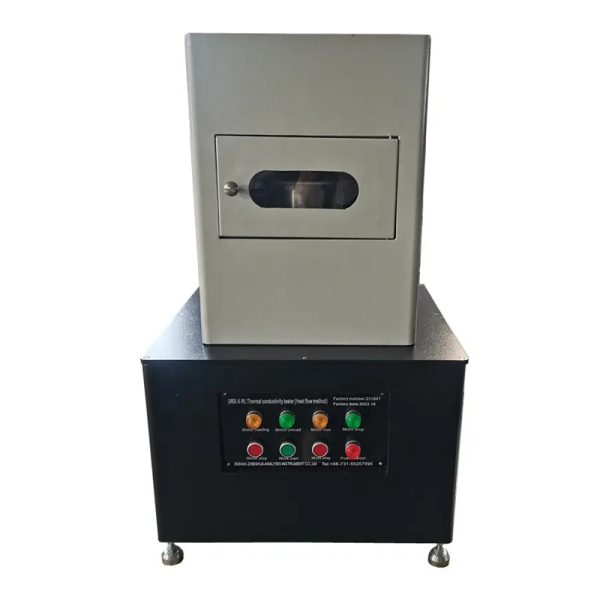

DRX-II-RL Heat Flow Meter
1
2
4
5

DRX-II-RL Heat Flow Meter

GA-TMA105 Thermomechanical Analyzer GA-TMA105 Thermomechanical Analyzer
DRX-II-300A Thermal Conductivity Machine DRX-II-300A Thermal Conductivity Machine

Category:

Description

DRX-II-RL Heat Flow Meter

Introduction

This thermal conductivity tester measures the thermal conductivity, thermal diffusivity, and hot-melt of different materials like high polymer material, ceramic, composite materials, rubber, silicone, resin, glass by using heat flow method. The instrument equiped with touch screen testing system automatic testing and report. Refer to standard MIL-I-49456A The thermal conductivity of thin solid electric insulation heat transfer performance testing standards, ASTMD5470-06,ASTM E1530 ,ASTM C 518, ISO 8301, JIS A 1412, DIN EN 12939, DIN EN 13163 and DIN EN 12667 and other relevant international standards.



DRX-II-RL Heat Flow Meter

Main technical parameters:

Range of average temperature RT~200℃, can be customized.
Temperature measurement resolution 0.01℃
Refrigeration system Forced air-cooled, external water bath, liquid nitrogen cooling
Flat-panel temperature control systems automatic control programmable data points 1-10
Sample size φ30mm, thickness 0.1 -20mm
Range of resistance 0.1~8.0 m2.K/W
Adaptive scope of thermal conductivity 0.015~40w/mk
Accuracy ≤±3%
Repeatability 2%
Environmental condition room temperature: 18~25℃, humidity: 20~80%RH
Data result analysis Automatic thermal analysis software, which can analyze and output testing parameters fast and accurately, in English
Supply voltage AC 220V±5%, power: 3.0kw
