DIN Portable Viscosity Cup

Description

DIN Portable Viscosity Cup

Indroduction

DIN Cup is made in accordance with German Standardization Committee DIN53211 (Deutsches lnnormung), for the determination of ink, paint, paint and other viscosity more convenient viscosimeter.

DIN cups are generally suitable for thin liquids with low viscosity;It is made of high quality aluminum cup with holes in the bottom and a capacity of about 100ml.It is widely used in Europe.



Feature

Simple and durable

The internal dimensions conform to the standard

Protective stainless steel handle

Polished stainless steel nozzle

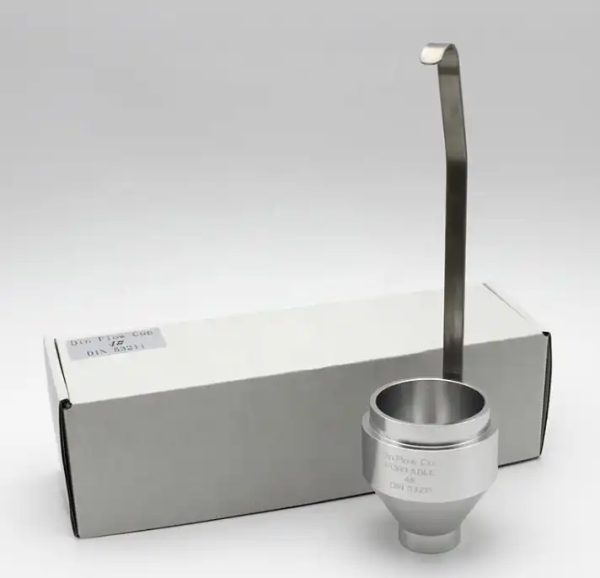

DIN Portable Viscosity Cup

Technical parameters:

1. Cup volume	100±1 ml
2, Nozzle hole diameter	Ø 4 ±0.02 mm
3. Material	Anodized alumina cup body, internal polished stainless steel nozzle
4. Ldeal measurement range	96 ~ 683 cSt



steps

Immerse the cup in the fluid so that the upper edge of the cup body is below the fluid level

Lift the cup vertically and press the stopwatch at the same time

Stop the stopwatch when the first break occurs

For evaluation, three consecutive trials are required

Take the average of the three measurements as the outflow time of the liquid



Specification:

Flow out hole:4mm

Measure range:96-583cst

Flow over time:20-110sec
