Description

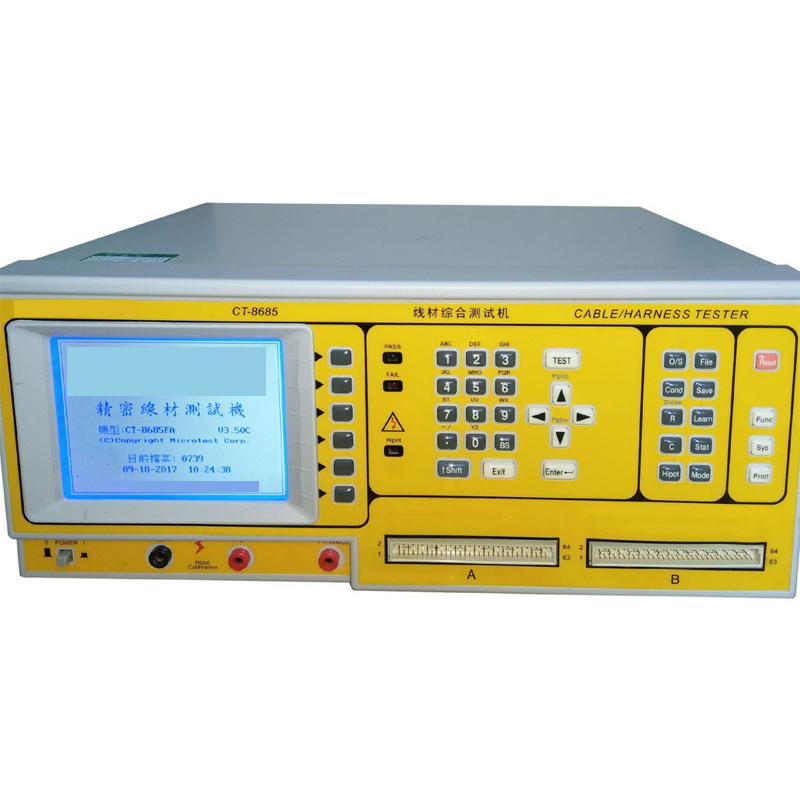

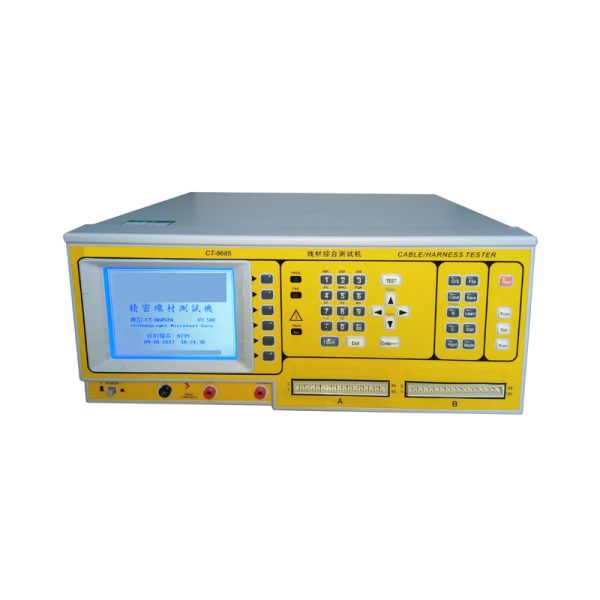

Wire comprehensive tester
Product characteristics
. 4- Line measurement
. Test up to 1500Vdc/1000Vac
. Automatically scan for points
. Transient poor conduction test
. Instant short route test
. Large 320×240 LCD display
. Programmable test Settings
. Statistics and printing functions
Wire comprehensive tester
| Test item | symbol | Test range |
| Resistance | R | 0.01Ω~10MΩ |
| Capacitor | C | 10pF~1000μF |
| Diode test | D | 0~8V |
| The conduction | COND | 1mΩ~50Ω |
| Insulation | IR | 1MΩ~1.5GΩ |
| High voltage (leakage current) | I.L. | 0.01mA~5mA |
| Disconnected/short-circuited | O/S | |
| Capacitance polarity judgment | P | |
| Instant break/short circuit test | ||
| Instantaneous conduction test | ||
| Short-circuit end point judgment |
| CT-8685．specification | |
| Advanced function | 4-line measurement, ultra-high accuracy
Programmable continuous testing Automatic learning automatically finds points self-diagnosis Self-correcting to zero |
| Basic accuracy | ±1% |
| Test scan mode | can be switched automatically or manually |
| Measure frequency and signal/voltage
Low voltage good test signal High voltage (leakage current) test High voltage (insulation) test |
100~100kHz, 1Vac 5Vdc / 50mA max. ±5% 50~1000Vac. ±5% / 0.01~60sec time can be set 50~1500Vac. ±5% |
| Measuring contact | 64 Measuring contact (128 points optional) Hipot Calibration +/- Output Auto Pin Search Jack |
| Panel key | Syskey / Fastkey / Editkey |
| I/O interface | RS-232 Port Printer Port Remote Control Port |
| memory | Up to 56 sets of Settings can be stored |
| Power input | 115/230Vac 60/50Hz ± 10% Switchable |
| attachment | Automatically find a probe
Fixture line User manual Power cord |
| Operating environment Temperature and Humidity | 15°C~35°C. RH≦75% |
| Dimensions (WxHxD) | 425 x 190 x 350mm |
| Weight | 15kgs |
| Cable specifications | 1μF Max. |
| Order code CT-8685N CT-8685NA |
content Cable Tester (1000Vdc) Cable Tester (700Vdc/500Vac) Cable Tester (700Vdc) Cable Tester (1500Vdc/1000Vac) 256test points |
