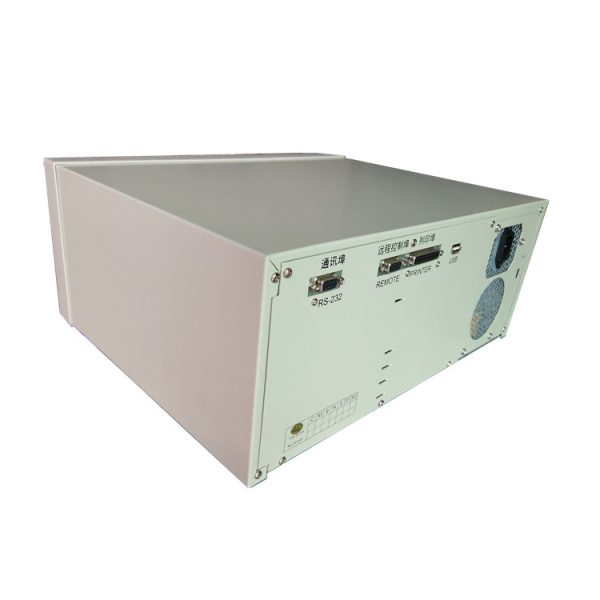

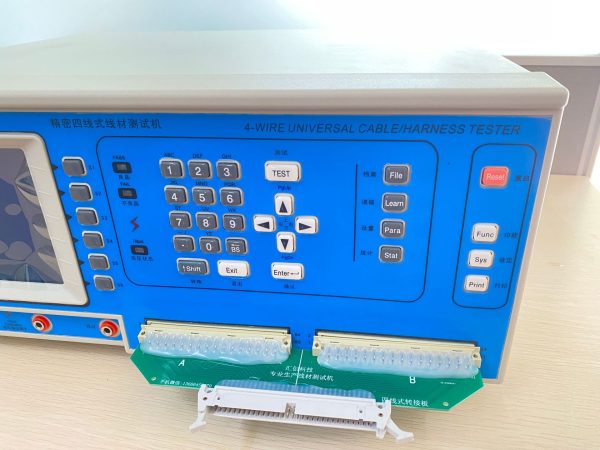

Cable wire harness tester
Wire tester/Wire tester is suitable for all kinds of connection lines, connectors, A/V audio/video connection lines, AC/DC plug connection money and other products on the production line detection or the above parts buyers feed inspection.
Cable wire harness tester
Characteristic description:
The system provides a English operation interface
Boot self-diagnosis, self-correction
Four-wire measurement, the minimum conduction can be measured to 1m2
Capacitance can be measured up to 1000uF system offers single side and point test system provides advanced transient short-circuit/on-test
Can be used for wire single side test/insulation test
Max DC1000V,AC700V test voltage
Up to 128/256 test points
320*240 resolution circular LCD display available for linear and safety testing
Provide defective product output signal, lock function
The system provides statistics and computer connection printing function
| Item | symbol | Measure Range |
| Break/short circuit | O/S | 200Ω~500KΩ |
| Short-circuit end point judgment | ||
| Conduction test | COND | 1mΩ~ 50.0Ω |
| Intermittent Cond. | 10mΩ~ 500.0Ω | |
| Resistance test | R | 0.01Ω~ 1MΩ |
| Capacitance test (including capacitance polarity) | C | 10pF~1000uF |
| Diode test | D | 0-7V |
| Insulation resistance | IR | 1MΩ~1000GΩ |
| AC leakage current test | Hipot | Max.5mA |
| Advanced function
Test scan mode |
Precision four-wire measurement
Programmable continuous testing Automatic spot finding Automatic diagnosis Self-correcting to zero Automatic/short-circuit scan can be switched |
| Measure the rated output of the signal source
Insulation test |
5Vdc 50~1500Vdc, 50~1000Vac(/FA) 50Vdc Resolution ±1% accuracy |
| Display/sound device | 320×240 Resolution graphic LCD display Pass/Fail LED Red and green indicator light/screen display/sound |
| Measure the contact | 64 Independent measuring contact
128 Independent Measuring contact (Optional) 256 Independent measuring contact High voltage correction positive and negative output Automatically find a terminal System/Quick/Edit/Function button group |
| Control menu | System/Quick/Edit/Function button group
RS-232 communication port Printer port Remote control port |
| Memory device | Flash memory
56 sets of test Settings files |
| Power supply
attachment |
115/230 Vac voltage input ±10%
60/50 Hz Automatically find a probe Horn fixture plate four wire to two wire fixture plate Fixture line Power cord |
| Temperature humidity | Temperature 15oC~35oC humidity RH≦75% |
| Dimensions (W x H x D)
weight Wire specification requirements |
425×190×350 mm Approx. 15Kg (without accessories) Up to 1μF |
