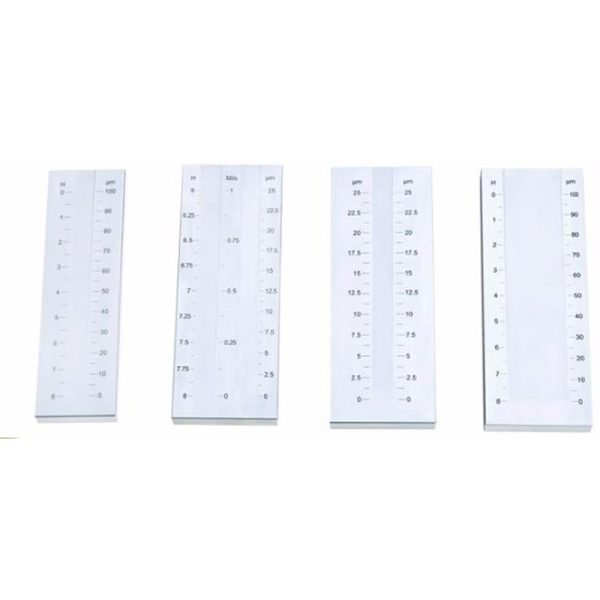

BGD241 Stainless Steel Scraper Fineness Meter
- Description
- Inquiry
Description
Fineness Meter
Introduction
1. In line with GB/T 1724, GB/T6753.1, ISO1524, used to determine the particle size and dispersion of pigments and impurities in coatings, paint pasts, inks and other liquids and pasts. 2. Advanced stainless steel wear-resistant material Made of imported high quality wear-resistant and corrosion-resistant stainless steel, reusable, standard with a scraper 3. Surface polishing, high overall accuracy The flatness of the upper plane and the lower plane of the scraper is less than 3 microns
Fineness Meter
Ordering Information
| Ordering Information | Effective groove size (LxW) | Range of measurement | Size of scraper | Value of division | Unit of display | Number of grooves | |
| Single groove scraper fineness meter
|
BGD 241/0 | 140 x 12.5mm | 0-15um | 170 x 50 x 13mm | 0.75um | um/Hegman | 1 |
| BGD 241/1 | 0-25um | 170 x 50 x 13mm | 1.25um | um/Hegman | 1 | ||
| BGD 241/2 | 0-50um | 170 x 50 x 13mm | 2.5um | um/Hegmanum/Hegman | 1 | ||
| BGD 241/3 | 0-100um | 170 x 50 x 13mm | 5um | um/Hegman | 1 | ||
| BGD 241/4 | 0-150um | 170 x 50 x 13mm | 7.5um | um/um | 1 | ||
| Double groove scraper fineness meter | BGD 242/0 | 140 x 12.5mm | 0-15um | 175 x 65 x 13mm | 0.75um | um | 2 |
| BGD 242/1 | 0-25um | 175 x 65 x 13mm | 1.25um | 2 | |||
| BGD 242/2 | 0-50um | 175 x 65 x 13mm | 2.5um | Hegman | 2 | ||
| BGD 242/3 | 0-100um | 175 x 65 x 13mm | 5um | mils | 2 | ||
| Iso scraper fineness meter | BGD 243/1 | 140 x 12.5mm | 0-25um | 175 x 65 x 13mm | 1.25um | um | 1 |
| BGD 243/2 | 0-50um | 175 x 65 x 13mm | 2.5um | um | 1 | ||
| BGD 243/3 | 0-100um | 175 x 65 x 13mm | 5um | um | 1 | ||
| Wide groove scraper fineness meter | BGD 244/1 | 140 x 37.0mm | 0-25um | 175 x 65 x 13mm | 1.25um | um/Hegman | 1 |
| BGD 244/2 | 0-50um | 175 x 65 x 13mm | 2.5um | um/Hegman | 1 | ||
| BGD 244/3 | 0-100um | 175 x 65 x 13mm | 5um | um/Hegman | 1 | ||
