BGD 583 ISO 2814 Opacity Meter Intelligent Reflectometer

Description

BGD 583 ISO 2814 Opacity Meter Intelligent Reflectometer Hiding Power Machine

1. Description:BGD 583 Intelligent Reflectance Tester is our newly developed portable microcomputer type product, which is the upgraded product of BGD 581. It can carry out 45/0 reflectance as well as covering power test and calculate the contrast value automatically.

2.Mainly used for

1.Reflectance measurement:

→ Colour shades of paints, inks and coatings.

→ Fading of textile and plastic.

→ Chalking of paint

→ the effect of cleaning agents and bleach

→ whiteness of recycled paper

→ cleanliness and oxidisation of metal surfaces

2.Measurement of hiding power:

→ hiding power of paints, inks and coatings

→ transparency of plastic films

→ opacity of paper

3.Product features

*Automatic calibration; automatic judgement

*Automatic calibration; automatic judgement of the zero point and the whiteboard standard

* Instant measurement, one key to switch on/measure.

* Simple measurement mode and statistical measurement mode.

*Automatic calculation of reflectance value

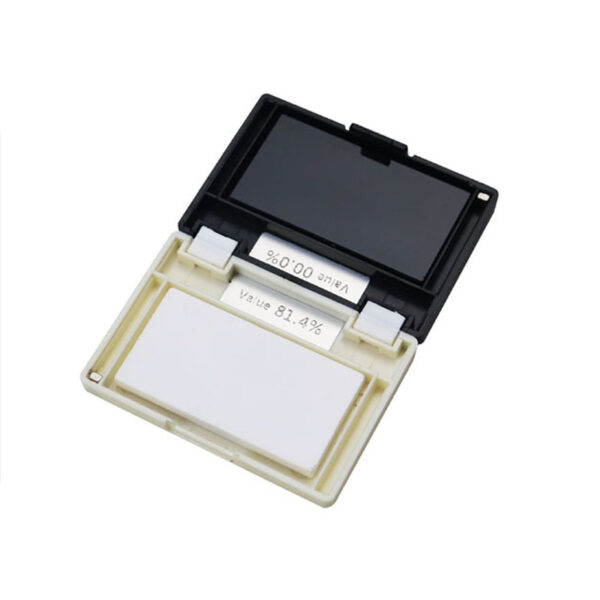

* Foolproof measurement, automatic correction of black and white working board value.

* USB interface, data transmission software technical parameters

4.Main Technical Parameters

Working Angle	45°(irradiate),0°(receive);CIE Illuminant C
Range of Measurement	0-99.9%
Resolution	0.10%
Accuracy	±1 unit or 1% of full scale
Repeatability	≤ 0.5%
Power Supply	One 1.5V alkaline battery or rechargeable
Window Size	12mm×17mm (ellipse)
Size	114mm×32mm×64mm
Weight	180g
Testing Environment	10ºC~40ºC, relative humidity should not be over 85%.
