Opis

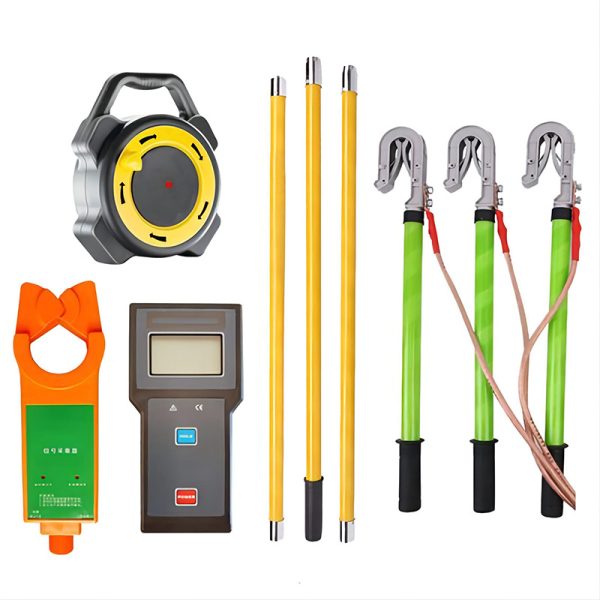

Cable ground fault locator
It is suitable for fast and accurate location of ground point after power failure of 6-35KV fault line, small current grounding system of cable distribution network, detection of overhead line gold grounding, arc grounding, transition resistance grounding and other fault location.
After the fault line is shut down, the transmitter applies low frequency and high voltage to the line to make the fault repeat. The sensor is hung on the line with an insulated rod along the line to detect the applied current signal, and the data is transmitted wirelessly to the handheld receiver to display the measurement results. Before the fault point, the current signal continues to exist, and after the fault point, the current signal disappears. The fault location can be quickly determined by rough segmentation followed by precise fixing.
Cable ground fault locator
Cechy produktu:
1, suitable for small current grounding system distribution network, detection of overhead lines of metal grounding, arc grounding, grounding through the transition resistance and other faults;
2, apply high voltage signal to reproduce the fault, constant current signal is stable, easy to detect;
3, low frequency signal to avoid the impact of system capacitance, can measure high fault resistance;
4, transmitter safety features: high voltage start blocking function, short circuit output allowed;
5, sensor and receiver wireless signal transmission, bezpieczny i niezawodny;
6, the transmitter can use the mains or automotive power supply, sensor and receiver dry battery power supply;
7. Small size and light weight of transmitter; The sensor is designed to reduce the volume and weight, and it is convenient to connect along the line. The receiver is hand-held design;
8, the receiver uses a large screen LCD display, showing the line current waveform and grounding status.
1. Test the signal generator
| Positioning accuracy | 0.2M |
| Output frequency | 1Hz |
| Open circuit voltage | fundamental wave RMS 0 ~ 2800V |
| Current test range | 100mama |
| Ground fault measurement range | Ground resistance ≤100 Kω
|
| Pulsating DC | 0 ~ 8kV, equivalent to the peak phase voltage of 10kV lines |
| Detection line length | ≥120km
|
| Short-circuit current | fundamental wave RMS 0 ~ 30mA |
| Signal output range | 0 ~ 100mA |
| Signal output accuracy | ±1mA |
| Wireless communication distance between sensor and receiver | not less than 30m
|
| Transmitter output power | maximum power 1000W |
| Transmitter power supply | AC 220V mains, generator (output power ≥1500W) |
| Waga | 15kg |
| Tom | 455×335×310mm |
2, signal transmission sensor
| Detect the cross-frequency signal emitted by the test signal generator. | |
| Automatic timing. | |
| Automatically displays the communication status with the pliers meter. | |
| Automatic display of device voltage. | |
| Automatic low voltage alarm. | |
| Detects the load current of the line. | |
| Clamp CT was used to measure the different frequency signal and load current. | |
| Can be used to measure insulated lines. | |
| Can display the current clamp battery status and battery voltage in real time. | |
| Dokładność testu | ±1%±3dgt(23℃±5℃, below 80%RH) |
| Detection range | 0.1mA ~ 100.0mA
|
| Transmission mode | wireless RF mode
|
| Transmission frequency | 433MHZ |
| Transmission distance | ≥30m
|
| Mouth diameter | ≥40mm |
| Working temperature | -30℃ ~ 70℃ |
| Zasilacz | 3 NIE. 7 alkaline dry batteries. |
| Waga | 0.45kg |
| Tom | 180×100×35mm |
3.Signal receiver
| Receive and display data from a handheld data detector. | |
| You can lock and hold data. | |
| In automatic pairing, the communication status with the pliers meter is displayed automatically | |
| Automatic display device voltage, automatic low voltage alarm. | |
| Display the detected signal size in digital mode | |
| Data transmitted by handheld signal detection devices can be stored. | |
| Tryb wyświetlania | Large screen LCD, backlight function. |
| Wireless distance | not less than 80m |
| Historical data can be stored for | ≥500 times. |
| You can set up a variety of ways to work. | |
| Data from the host and receiver can be read. | |
| Working temperature | -30℃ ~ 70℃. |
| Zasilacz | 5 NIE. 5 alkaline dry batteries.
|
| Waga | 0.45kg |
| Tom | 205 ×100×35mm |
Cable ground fault locator
