Opis
Speed governor
Overview of constant speed device

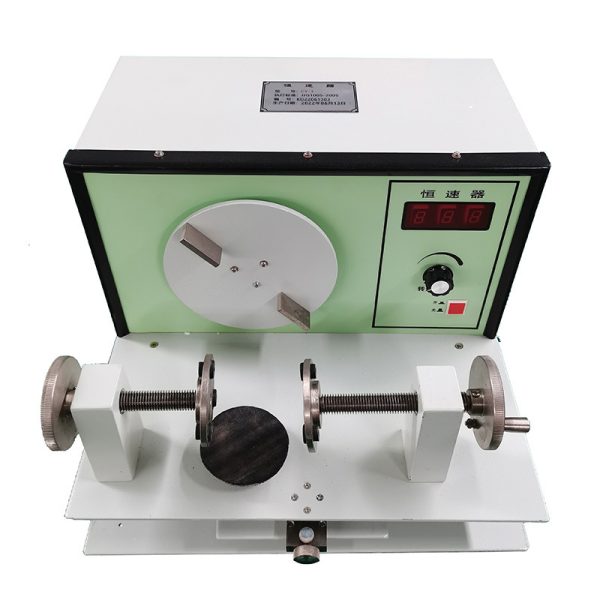

KDCY3 type constant speed device (also known as constant speed source) is designed and manufactured according to the requirements of the implemented JJG622-97 “Insulation resistance meter Verification Regulations”. The constant speed device is driven by DC permanent magnet motor, which changes the motor speed by changing the motor voltage, and has the characteristics of stepless speed change and convenient adjustment.
The digital tachometer is used to measure the speed of the drive disk accurately and reliably.
The constant speed device can drive the rotation of the insulation resistance meter at the same time, but also can carry out the verification items of 5° tilt before, Po, left and right, and is the supporting equipment for the verification of the insulation resistance meter.
Speed governor
| speed range | no-load 0~≥200r/min continuous adjustable |
| speed accuracy | ±1r/min |
| zasilacz | AC50HZ 220 (1+10%) V |
| power consumption | < 50VA |
| ogólny rozmiar | 390×390×320mm |
