GA-7032 32-Channel Temperature Data Logger
- Opis
- Zapytanie
Opis
Temperature Data Logger

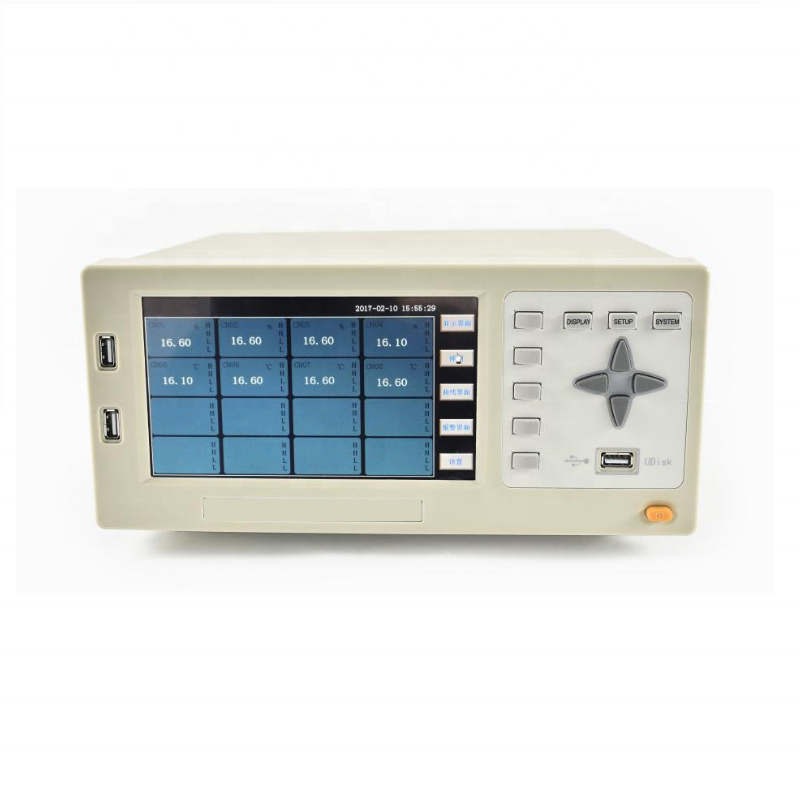

GA-7000 series temperature data logger adopts high-performance ARM microprocessor, it is 7 inches touch screen, it can independently and blend collect the data of multi-channel temperature, woltaż, resistance and humidity. High/low beep function and communication transmission. Can be extended to 80 kanały, and is compatible with various temperature sensors. With 10ms quick respond and stable data. Support RS-232 and USB communication, realize data acquisition, analysis and print through the standard computer software. Support network communication and USB disk storage and store real-time sampling data. The users can adjust data for each channel independently.
Temperature Data Logger
| SPECIFICATIONS | |||||
|
Multi-channel Temperature Data Logger |
|||||
| Model |
GA-7008 |
GA-7016 |
GA-7024 |
GA-7032 |
|
| Kanał |
8 |
16 |
24 |
32 |
|
| Parametry | Thermocouple:J/K/T/E/S/N/B/R/W
Thermal resistance: PT100/CU50 DCV, Resistance, Wilgotność, Ciśnienie, Aktualny |
||||
| Basic Accuracy | 0.2℃±2 digits (not include thermocouple error) | ||||
| Rezolucja | 0.01℃ | ||||
| Zakres pomiaru | -270°C~1768°C(Resolution 0.01℃, varying depend on graduation)
Napięcie:0.0005mV~100.000V Resistance:0.001W~200.00W Wilgotność:0%RH-100%RH (humidity sensor/pressure transmitter are optional) |
||||
| Prędkość | 10ms/10-channel | ||||
| Correction | Error correct for each channel | ||||
| Comparator | High/low beep; Individual setting high/low value for each channel | ||||
| Interfejs | RS232C interface; 3-USB-disc interface | ||||
| Fakultatywny | WIFI communication interface | ||||
| Oprogramowanie | Data acquisition Software | ||||
| Protection | Maks 300 ODKURZACZ | ||||
| CJC | Dokładność:0.1℃ | ||||
| Inni | 7 inches TFT-LCD with touch screen,broken thermocouple check function, internal memory 64M, U-disk storage | ||||
| GENERAL FEATURES | |||||
| Zasilacz | Napięcie:65VAC~240VAC DC 24V lithium battery powered (opcjonalny) | ||||
| Size and Weight | 288mm(Szerokość)x288mm(Wysokość)x200mm(Głębokość); Waga: 5kg | ||||
| ORDERING INFORMATION | |||||
| Akcesoria | RS232-USB convert connector
U-disk K type thermocouple wire 1pcs/channel (2 meters/pcs) Data acquisition software AC Power Cord |
||||
