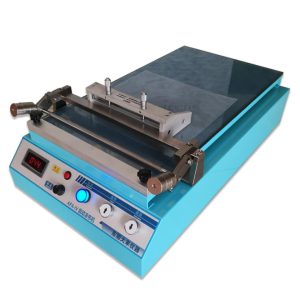

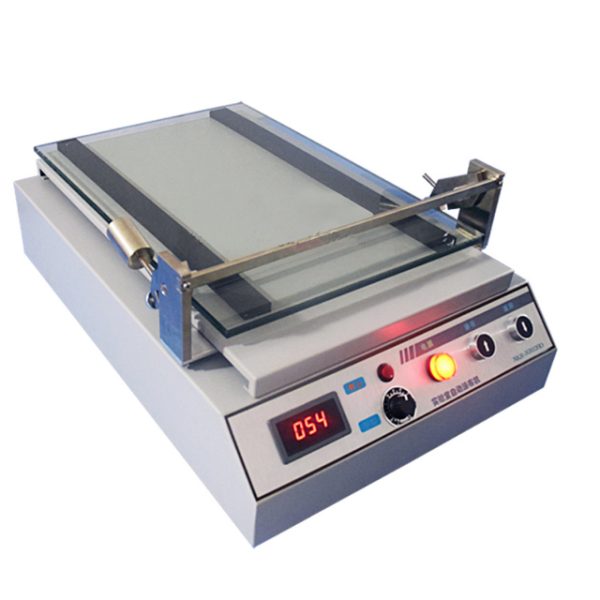

Automatic Wire Bar Coater
Small automatic coating machine, is in order to make the test personnel can easily coated a precise coating, reduce or eliminate in the coating process such as pressure on the coating speed and different error caused by human factors.The machine adopts the infinite variable speed motor, precise control coating rate, can be done automatically on the different substrate wet film coated motion, greatly improve the reproducibility of the coating.
Automatic Wire Bar Coater
parametry techniczne:
Coating method: Wire rod coating
Prędkość:0 -10 m/min can be set
Uniformity of coating：<4%
Mesa of Equipment:320*450mm
Coating Area:300*420mm
Coating Thickness:0.005-0.2MM
Equipment size:710*420*280mm
Waga:22KG
Napięcie:110-220V 50 Hz
Moc:48W
Automatic Wire Bar Coater
Coating tool (opcjonalny) :
1.Single-side and four-side preparers (a variety of specifications can be selected or customized)
2.Adjustable preparator (0-3500um adjustable), szerokość: 55mm, 100mm, 150mm, 200mm, 300mmto choose.
3.Longcoating rod: 6, 8, 10, 12, 15, 20, 25, 30, 40, 50, 60, 70, 80, 100, 120, 150, 200 jeden
4.Japanese OSP wire rod can be used with a minimum coating thickness of 1.5um.1.5, 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 13, 15, 17, 18, 22, 25, 30, 35, 40, 42, 47, 50, 52, 80, 100, 120, 150 jeden
5.American RDS wire rod (3/8 “, diameter 9.5mm).
Specification of wire rod: diameter: 10 mm, total length: 400 mm, effective coating width: 300 mm
