GA-4323 Igłowy tester płomienia

Opis

GA-4323 Igłowy tester płomienia

Wstęp
Needle flame tester is suitable for lighting, low voltage electrical appliances, sprzęt AGD, machine tools, electric tools, electronic instruments, electrical instruments, information technology equipment, electrical affairs equipment, electrical connectors, accessories and other electrical and electronic equipment and its components, components research and production
And quality inspection department, also suitable for insulation materials, engineering plastics or other solid combustible materials industry.

Comply with GB4706.1, GB5169.5-2008, IEC60695-2-2, IEC60695-11-5 and other related standards;

GA-4323 Igłowy tester płomienia

Experimental principle:
The needle flame tester is a needle-shaped burner of specified size (0.9mm), with a specific gas (butane), and a directional fire test at 45° Angle, depending on whether the test is ignited and the holding time and combustion length to assess the fire risk of small flames caused by fault conditions inside the equipment.

GA-4323 Igłowy tester płomienia

Cechy produktu:

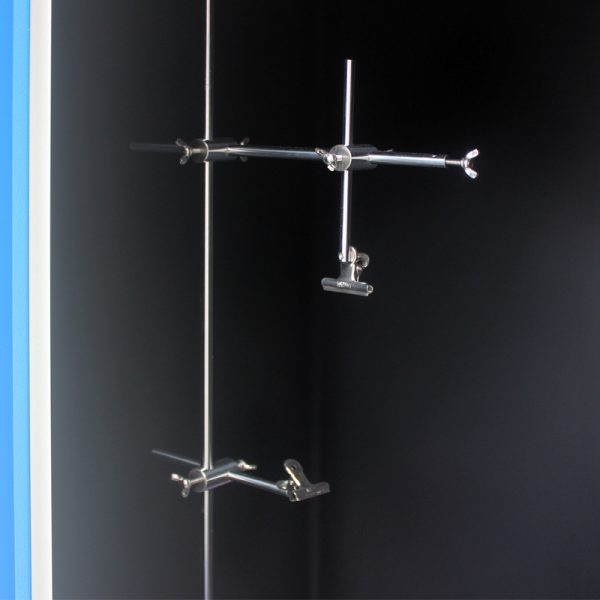

1, the characteristics of the test equipment is that the combustion box and the main mechanical parts are made of stainless steel, the shape is exquisite, and the smoke corrosion resistance. The control system has a high degree of automation, the key components are imported, the digital display time, the fixture is three-dimensional adjustable, the test program is automatic control, the independent air extraction, the observation record is easy to use, stable and reliable.
2. The shell and important parts of the test chamber are made of stainless steel, resistant to smoke and gas corrosion. The control system has a high degree of automation and automatic ignition function. Temperature and time digital display, easy to observe and record, stable and reliable use.

GA-4323 Igłowy tester płomienia

Product parameters:

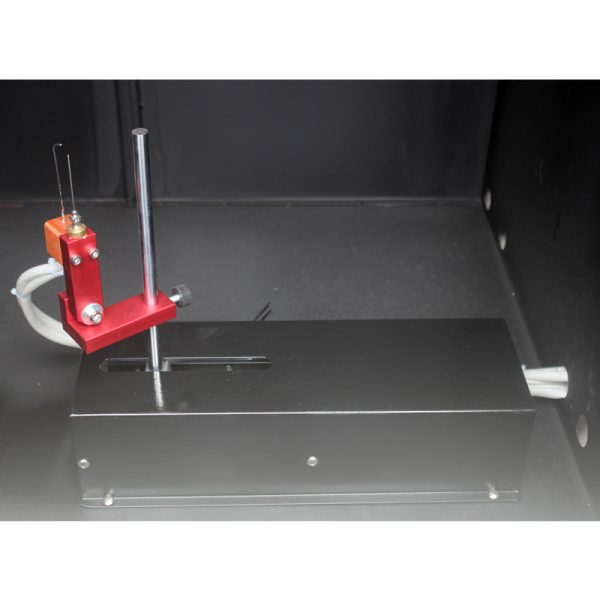

1. Needle burner: stal nierdzewna, inner hole 0.5±0.1mm, outer diameter ≤ 0.9mm, length ≥35mm;
2. Burner Angle: pionowy (when adjusting and measuring flame height) or tilt 45°(when testing);
3.Combustion gas :95% butane gas or propane gas;
4. Ignition bedding: white pine board (10mm grubości), the surface is covered with 12~30g/m² standard silk paper, 200mm±5mm below the flame;
5. Temperature range :0–1000C;
6. Flame temperature requirements: from 100±2℃ to 700℃±3C, should be completed within 23.5±1.0s;
7. Flame height :12mm±1mm, height measuring device;

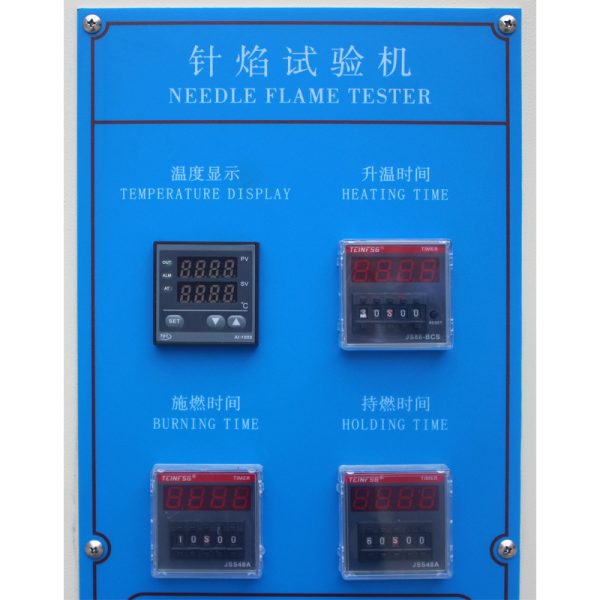

8. Burning time :0s~999.9s adjustable, generally set to 30s;
9. Holding time :0s~999.9s, automatic record, manual suspension;
10. Test space :≥0.5m3, black background, (can be customized according to customer requirements of 0.75m³ cubic or 1 m3);
11. Czujnik temperatury: K-type insulated armored electric couple (medium 0.5mm);
12. Test program automatic control, independent pumping system;
13. Wymiary :L1120*W520*H1250mm, exhaust 100mm;
14. Test power supply :220V/AC, 50Hz;
