GA-1028 Environmental Stress Cracking Tester
- Opis
- Zapytanie
Opis
GA-1028 Environmental Stress Cracking Tester
Standardy:
GB/T1842, GB/T2951.41, ASTM D1693
Overview:
Environmental stress cracking tester is mainly used to measure the stress cracking capacity of ethylene – based resins and plastics.

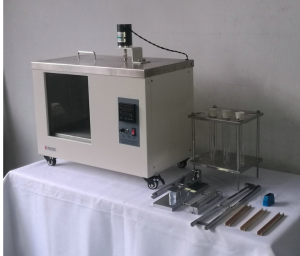

GA-1028 Environmental Stress Cracking Tester
Cechy:
- The shell of this product is made of high-quality cold-rolled plate with plastic-sprayed surface.
- The inner tank, upper cover and test-tube stand are made of 304 stal nierdzewna, which are resistant to corrosion and durable.
- Sample retainer brass material, machined slotted (non-stainless steel plate bending).
4, PID special temperature control instrument table, accurate temperature control, stabilna wydajność, łatwy w obsłudze.
GA-1028 Environmental Stress Cracking Tester
Parametry techniczne:
- Adjustable temperature range: room temperature -100℃
- Dokładność kontroli temperatury: ±0.5℃
- Blade length: 19mm
- Blade height: 3mm
- Blade thickness: 0.24mm
- Notch depth: 0.3-0.65mm
- Sample specifications: długość: 38±2.5mm, szerokość: 13±0.8mm, wysokość: 1.75-3.00mm
- Specimen retainer width: 12±0.05mm, 11.75±0.05mm (opcjonalny)
- Tank size: 420*305*375mm (długość * szerokość * wysokość)
- Ogólny wymiar: 605*330*610mm (długość * szerokość * wysokość)
11, thermal medium: pure water
- Temperatura otoczenia: 10-40℃)
- Zasilacz: 220V 50Hz
- Heating power: 3KW
GA-1028 Environmental Stress Cracking Tester
Configuration List
| Serial Number
|
Nazwa | Units | Ilość | Uwaga |
| 1 |
Thermostatic Bath |
PCS |
1 |
|
| 2 |
Test Tube Stand |
PCS |
1 | 8 stacja, expandable
|
| 3 |
Nick Device
|
PCS | 1 | |
| 4 | Test Tube
|
PCS | 3 | |
| 5 | Cutting Tool For Processing Sample | PCS | 1 | 38* 13mm |
| 6 | Sample Retainer
|
PCS | 3 | 1. There are two options for the width of the inner slot: 12+ — 0.05mm;11.75 + 0.05 mm
2. A maximum of 10 samples can be placed in each sample cage |
| 7 | Sample Bending Device | PCS | 1 | |
| 8 | Sample Transfer Tool | PCS | 1 | |
| 9 |
Blade |
PCS |
3 | |
| 10 | Specyfikacja | PCS | 1 | |
| 11 | Packing List | PCS | 1 | |
| 12 | Certificate
|
PCS | 1 |
Standardy:
GB/T1842, GB/T2951.41, ASTM D1693
Overview:
Environmental stress cracking tester is mainly used to measure the stress cracking capacity of ethylene – based resins and plastics.
