Opis

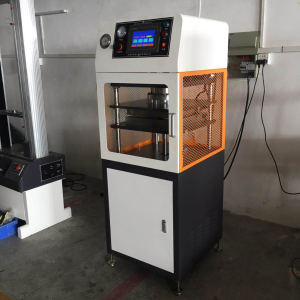

GA-1007 Mała maszyna Vulcanizer
Używać:
It is suitable for hot pressing, vulcanizing sample making and pressing into products.For example: film
switch, horn film and other concave and convex surface hot stamping molding, thin film hot bonding, electrical products such as compression molding, itp.

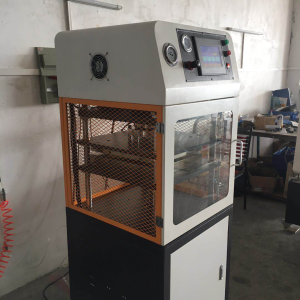

GA-1007 Mała maszyna Vulcanizer
Szereg zastosowań:
* film switch, horn film and other concave and convex surface hot stamping molding;
* testing of plastic granule laminates and thermal bonding of thin films;
* suitable for the production and use of large area thermoforming products.
GA-1007 Mała maszyna Vulcanizer
Cechy produktu:
* four-column and three-plate steel structure is adopted, the movable plate is parallel to the working face
and the four-column is matched with precision guide sleeve, with high precision;
* ciśnienie, stroke, speed and holding time can be adjusted according to pressing process requirements;
* hot plate temperature control alone, up and down with RKC waalwijk intelligent temperature controller,
temperature control accurate±1 ℃;
* Taiwan brand air pressure, electrical components and Japanese NOK seals, wytrzymały;
* two-hand operation, with emergency stop button, easy to install and adjust the mold, high safety;
* casters and foot cup holders are provided under the work table, making it portable, labor-saving and
wydajny;
* optional safety photoelectric protection device, humanized, more safe and assured work;
* non-standard worktable size and large pressure type and other special requirements can be customized. Working mode: electric heating.Heating method: electric heating
GA-1007 Mała maszyna Vulcanizer
Specyfikacja
| Model | Jednostka | GA-1007 |
| Pojemność | ton | 10 |
| Cylinder pressure | kg/cm2 | 8KG |
| Press plate area | mm | 350*350 |
| Max stroke | mm | 150 |
| Opening height | mm | 150 |
| Heat time | min | 0-30 |
| Temperature range | ℃ | RT-250±1 |
| Electric heat pipe power | kw | 4.8 |
| Power power | kw | 1.5
|
| Napięcie | V | 220 |
| Waga | kg | 230
|
| Outside size | mm | L650*W600*H1780 |
Używać:
It is suitable for hot pressing, vulcanizing sample making and pressing into products.For example: film
switch, horn film and other concave and convex surface hot stamping molding, thin film hot bonding, electrical products such as compression molding, itp.
