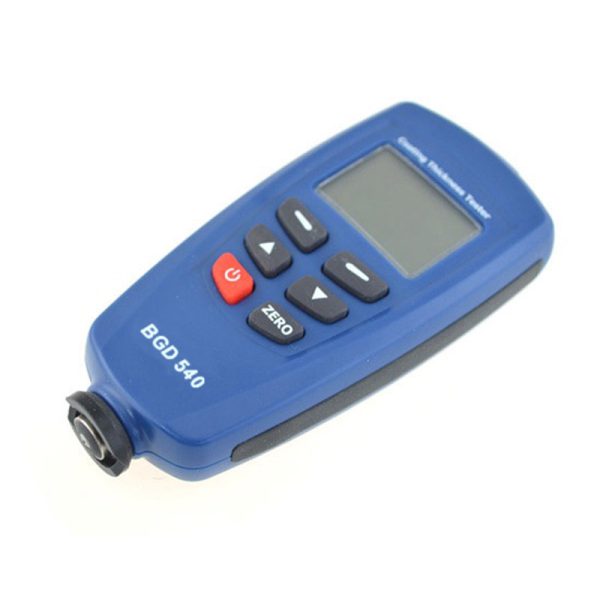

BGD 540 Ekonomiczny miernik grubości suchej powłoki
This is a ecomomic dry film thickness gauge which can measure both non-magnetic coatings on steel and insulating coatings on non-ferrous metals.
BGD 540 Ekonomiczny miernik grubości suchej powłoki
Cechy:
◆ Menu operation system
◆ Two measuring mode：CONTINUE and SINGLE mode
◆ Two working Mode：DIRECT and GROUP mode
◆ Statistic Display：AVG, MAX, MIN, NO., S.DEV
◆ One point calibrating, two points calibrating and basic calibratingeasily
◆ Memory for 400 readings（80 DIRECT and 320 GROUP readings）
◆ Delete single readings and all group readings easily
◆ High alarm and Low alarm for all working mode
◆ Low battery, error indication
◆ USB interface for PC software (windows 98/2000/xp/vista)
◆ Akcesoria: Two “AAA”batteries, Kabel USB, CD, Calibration Iron, Calibration Aluminum, PrecisionStandard, Gift box with carrying case.
BGD 540 Ekonomiczny miernik grubości suchej powłoki
| Sensor Probe | F | NF |
| Working principle | Magnetic induction | Eddy current principle |
| Zakres pomiarowy | 0~1250um | |
| Guaranteed tolerance （of reading） | (±3%+1)jeden | (±3%+1.5)jeden |
| Low range Precision | 0.1jeden | |
| Minimum curvature radius | 1.5mm | 3mm |
| Diameter of Minimum area | 3mm | 5mm |
| Basic critical thickness | 0.5mm | 0.3mm |
| Rozmiar（HxWxD） | 113.5mm x 54mm x 27mm | |
| Waga | 110G | |
