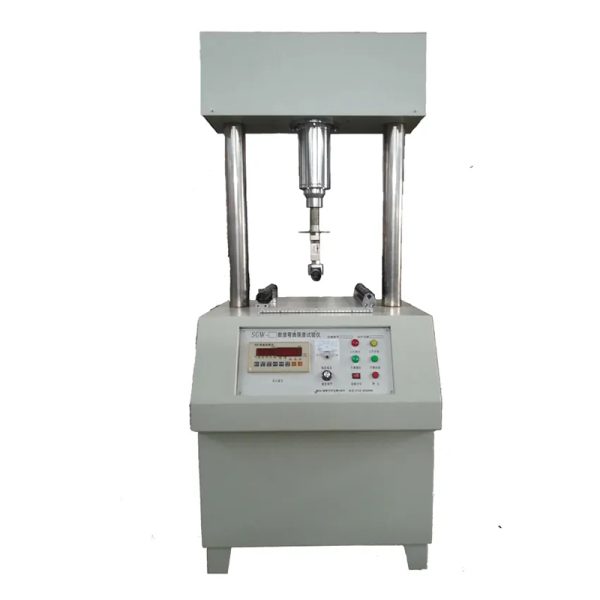

SGW-500N 3 Puntbuigtestmachine

Invoering

The digital testing machine is mainly used in testing materials flexural strength and other physical properties. With electric motor-driven loading, elevator mechanism realizes constant speed loading. It is widely used in testing ceramics, glas, cement, tiles flexural strength. Changing fixtures can also testing compressive, breaking resistance and other property parameters. It is suitable for testing the bending strength of engineering ceramics with high strength under room temperature at 3 En 4 points. Refer to relevant testing standards and manufacturer’s specification for sample size.

SGW-500N 3 Puntbuigtestmachine

Belangrijkste technische parameters:

1. Max loading: 500N

2. Oplossing: 0.1N

3. Sample scope: 40×40~300×300(mm);

4. Loading rate: 15(mm/S);

5. Computer completes data processing, nauwkeurigheid < 0.5%;

6. Can automatically calculate the peak and save data;

7. Stroomvoorziening: 220V, 80W.
