Beschrijving
|
Model
|
Describe
|
Reference standard
|
Specificatie
|
|
BND-A
|
IEC 61032 Figuur 1 – Test probe A
|
IEC60529
IEC61032
|
Kogeldiameter: 50 mm
Baffle plate diameter: 45 mm
Baffle plate thickness: 4 mm
Handle diameter: 10 mm
Handle length: 100 mm
Materiaal: Nylon + roestvrij staal
|
|

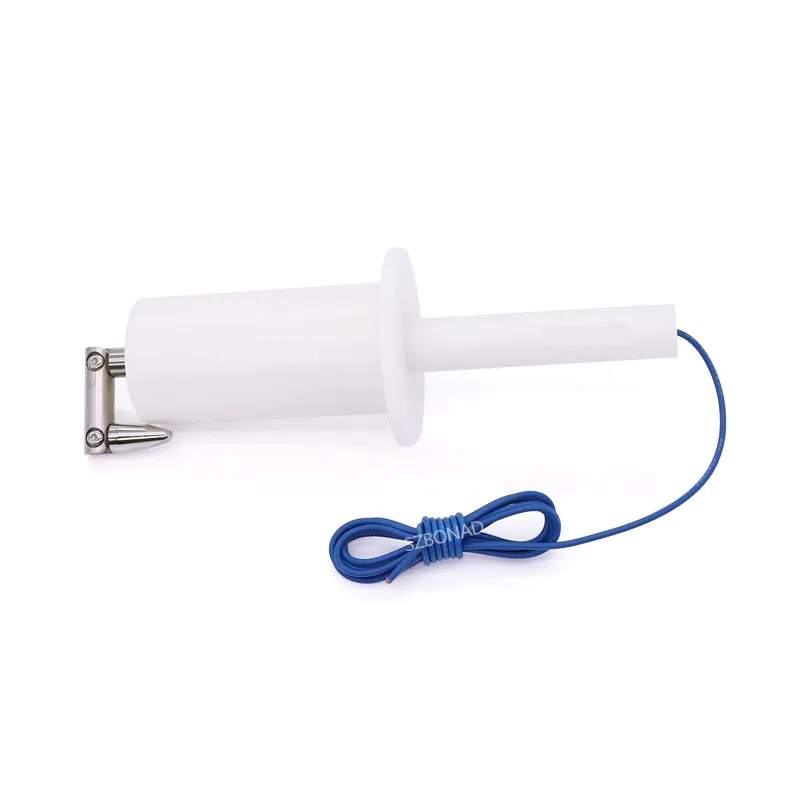

BND-B
|
IEC 61032 Figuur 2 – Test probe B
|
IEC60529
IEC61032
IEC60335
IEC60884
IEC60745
IEC60045
IEC60950
IEC60238
IEC60601
IEC60968
IEC61010
IEC60065
|
Knurled finger diameter: 12 mm
Knurler finger length: 80 mm
Baffle plate diameter: 50 mm
Baffle plate length: 100 mm
Baffle thickness: 20 mm
|
|

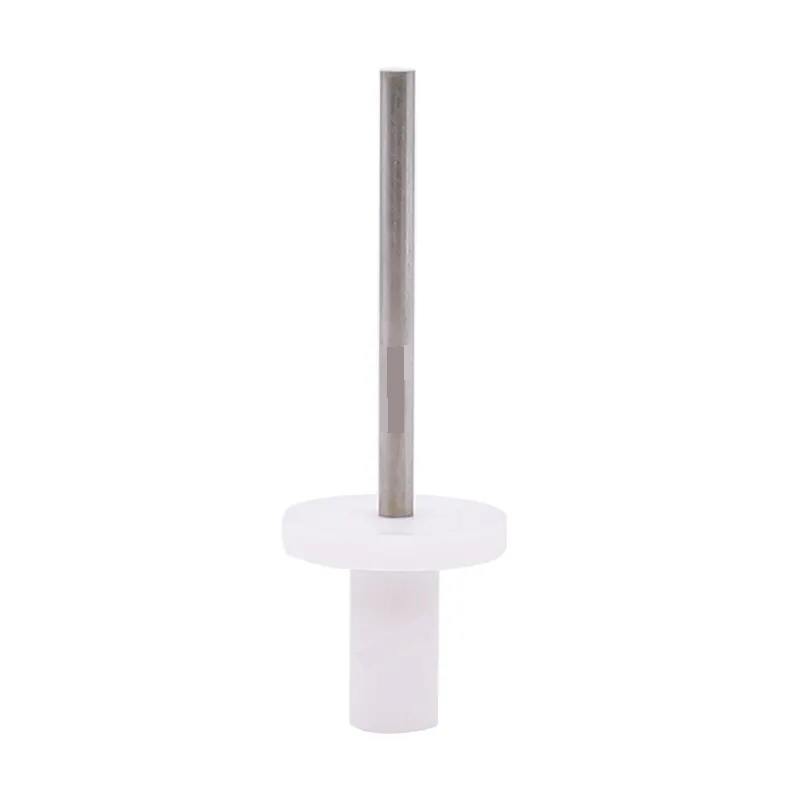

BND-C
|
IEC 61032 Figuur 3 – Test probe C
|
IEC61032
IEC60529
|
Test probe length: 100 mm
Test probe diameter: 2.5 mm
Dam-sphere diameter: 35 mm
Handle diameter: 10 mm
Handle length: 100 mm
Materiaal: Nylon + hardened steel
|
|
BND-D
|
IEC 61032 Figuur 4 – Test probe D
|
IEC61032
IEC60529
|
Test probe length: 100 mm
Test probe diameter: 1 mm
Dam-sphere diameter: 35 mm
Handle diameter: 10 mm
Handle length: 100 mm
Materiaal: Nylon + hardened steel
|
|
BND-G500
|
IEC 61032 Figuur 5 – Test probe 1
|
IEC61032
|
Diameter: 50 mm
Gewicht: 500 G
|
|
BND-G15
|
IEC 61032 Figuur 6 – Test probe 2
|
IEC61032
|
Diameter: 12.5 mm
Gewicht: 15 G
|
|
BND-11
|
IEC 61032 Figuur 7 – Test probe 11
|
IEC61032
IEC60065
IEC60335-1
IEC60884-1
IEC60238
IEC60950
IEC61010
|
Nodular Finger length: 80 mm
Nodular Finger diameter: 12 mm
Dam-board diameter: 50 mm
Dam-board thickness: 5 mm
Materiaal: Nylon and stainless steel
|
|
BND-13
|
IEC 61032 Figuur 9 – Test probe 13
|
IEC60065
IEC60335-1
IEC60950
IEC61302
IEC60601
IEC60745
|
Test probe diameter: head 3 mm, tail 4 mm
Test probe length: 15 mm
Dam-board diameter: 25 mm
Dam-board thickness: 5 mm
Materiaal: Handle is made of Nylon, tip is stainless steel
|
|
BND-12
|
IEC 61032 Figuur 8 – Test probe 12
|
IEC61032
|
Test probe diameter: 4 mm
Test probe length: 50 mm
Dam-board diameter: 25 mm
Dam-board thickeness: 4 mm
Materiaal: Handle is made of Nylon, tip is stainless steel
|
|
BND-19
|
IEC 61032 Figuur 13 – Test probe 19 (small finger probe Φ 5.6)
|
IEC61032
EN71
ASTM F963
|
Knurled finger diameter: φ5.6 mm
Head radius: 2.8 mm
Knurled finger length: 44 mm(Three knurls,16.7 mm knurl)
Materiaal: Nylon and stainless steel
|
|
BND-18
|
IEC 61032 Figuur 12 – Test probe 18 (small finger probe Φ 8.6)
|
IEC61032
EN71
ASTM F963
|
Knurled finger diameter: φ8.6 mm
Head radius: 4.3 mm
Knurled finger length: 57.9 mm (Three knurls,19.3 mm knurl)
Materiaal: Nylon and stainless steel
|
|
BND-31
|
IEC 61032 Figuur 14 – Test probe 31
|
IEC61032
|
Test Rod diameter: φ25 mm
Rigid Finger length: 80 mm
Dam-board diameter: 60-110 mm
|
|
BND-32
|
IEC 61032 Figuur 15 – Test probe 32
|
IEC61032
|
Test Rod diameter: φ25 mm
Dam-board diameter: 50 mm
|
|
BND-41
|
IEC 61032 Figuur 16 – Test probe 41
|
IEC61032
|
Test Rod diameter: 30 mm
Rigid Finger length: 80 mm
Handle diameter: 50 mm
Handle length: 80 mm
|
|
BND-43
|
IEC 61032 Figuur 17 – Test probe 43
|
IEC61032
|
Bar wide: 50 mm
Dikte: 5 mm
|
